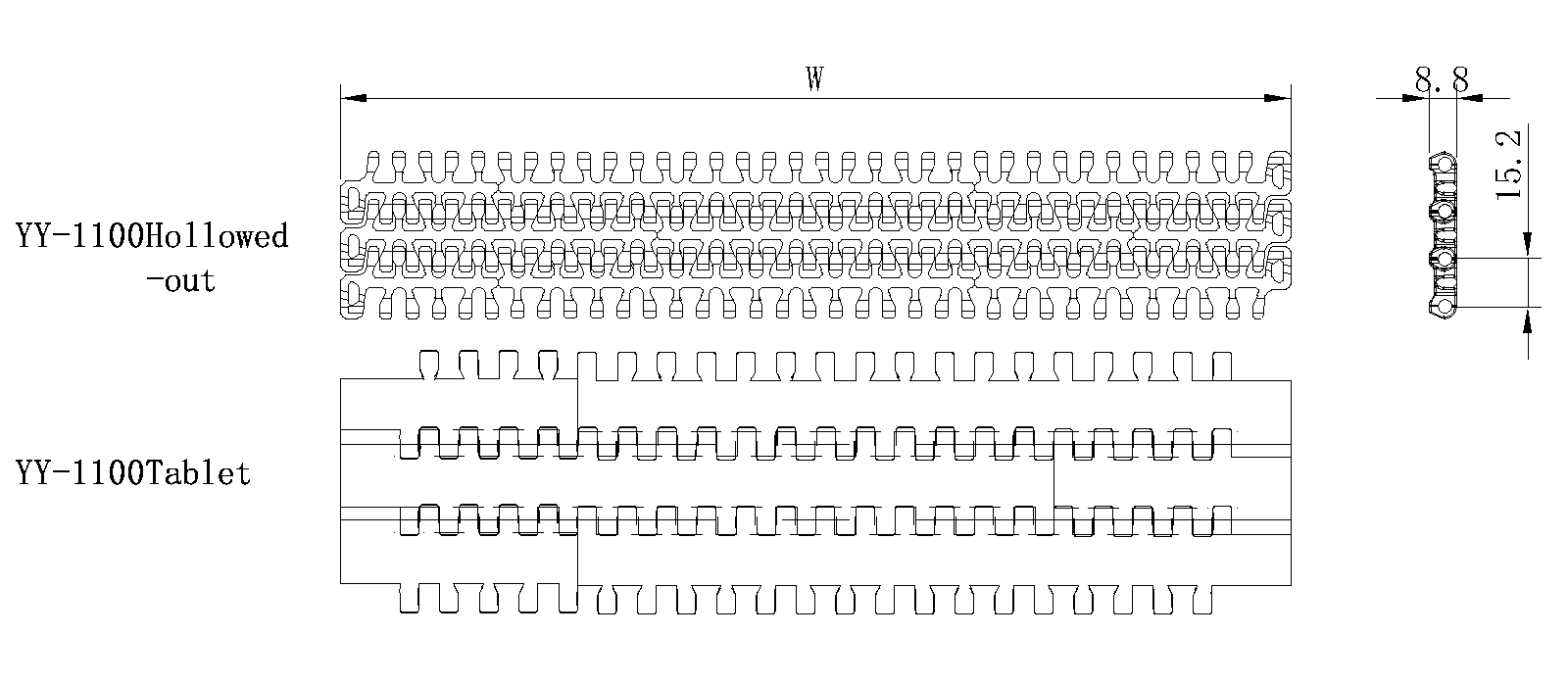

| W=152.4+25.4*N | 304.8 | 457.2 | 609.6 | 762 | 914.4 | 1066.8 |
|---|---|---|---|---|---|---|

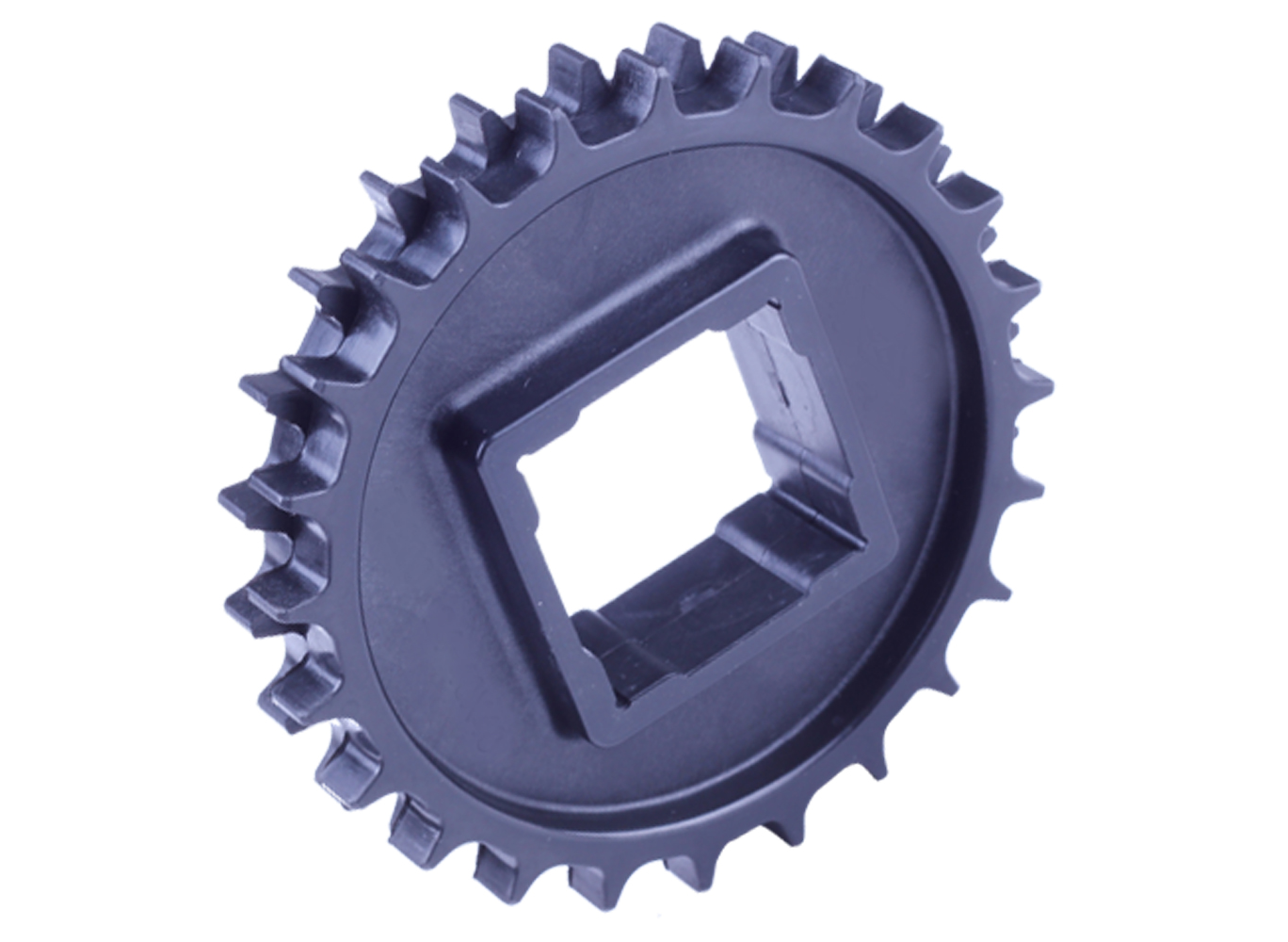

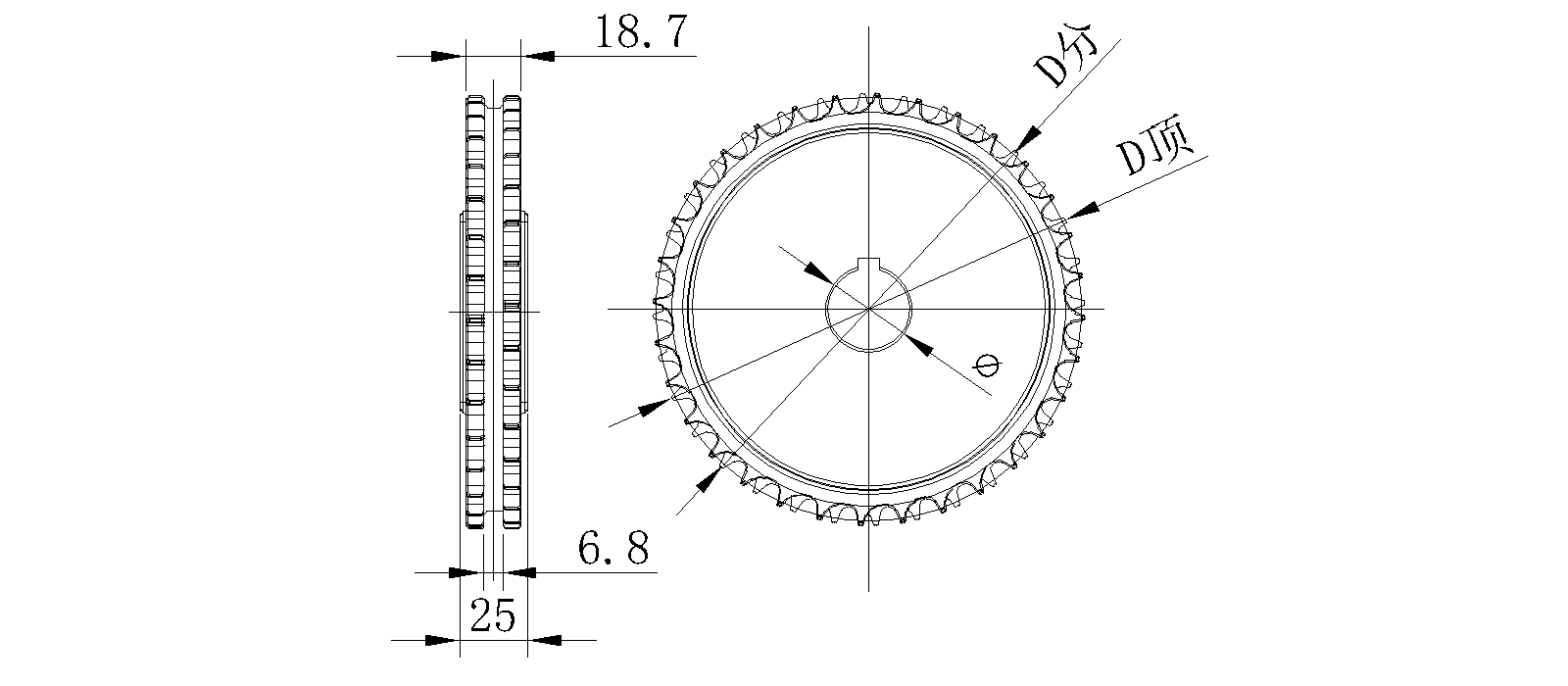

Y-1100 Series molded split drive sprocket
Material: Nylon with glass fiber, excellent mechanical strength and good wear resistance
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 16 | 75.89 | 78.8 | 20/25/30/35 |
| 24 | 116.5 | 118.2 | 25/30/35/40 |
| 32 | 155.1 | 157.7 | 25/30/35/40 |

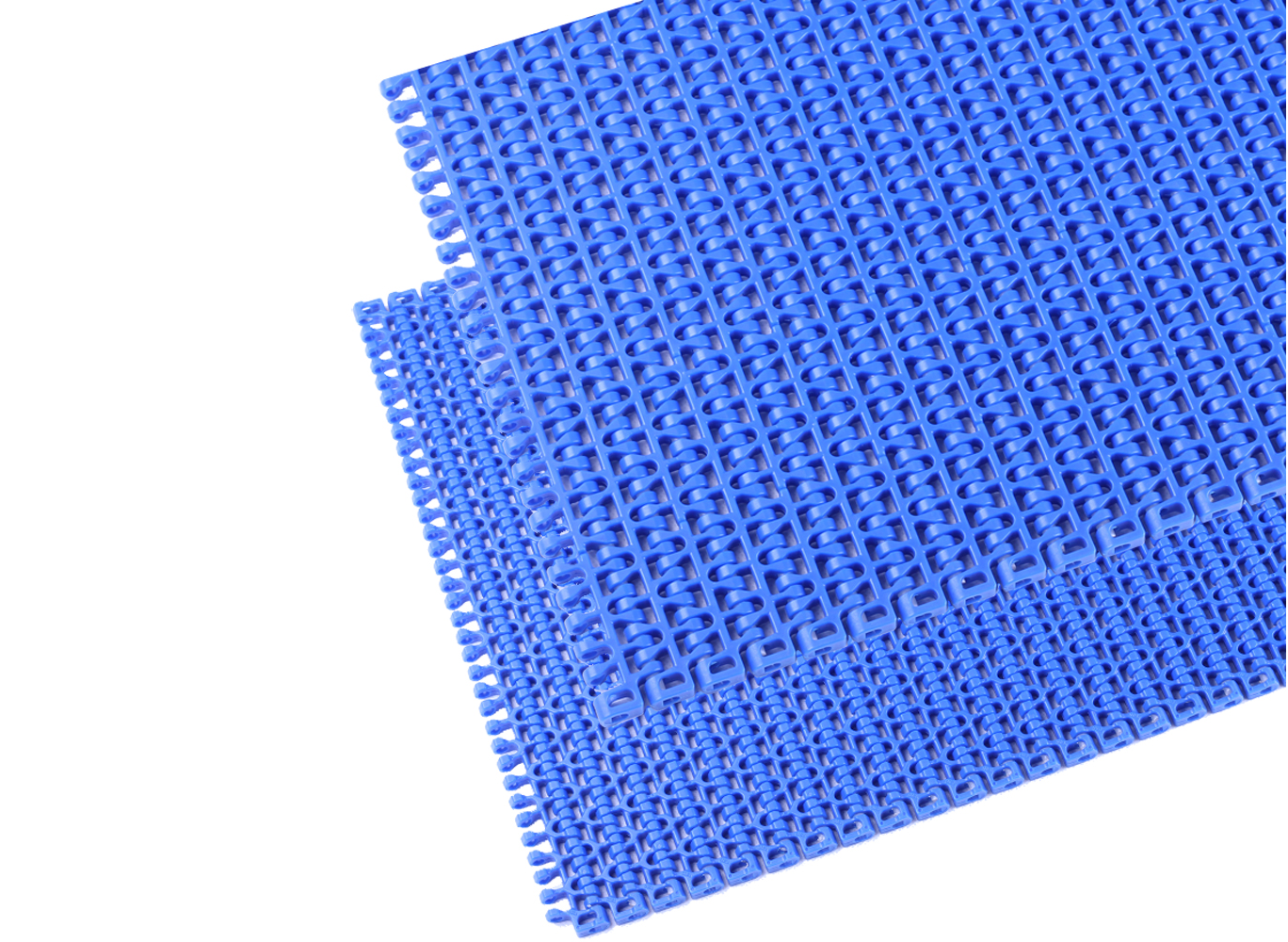

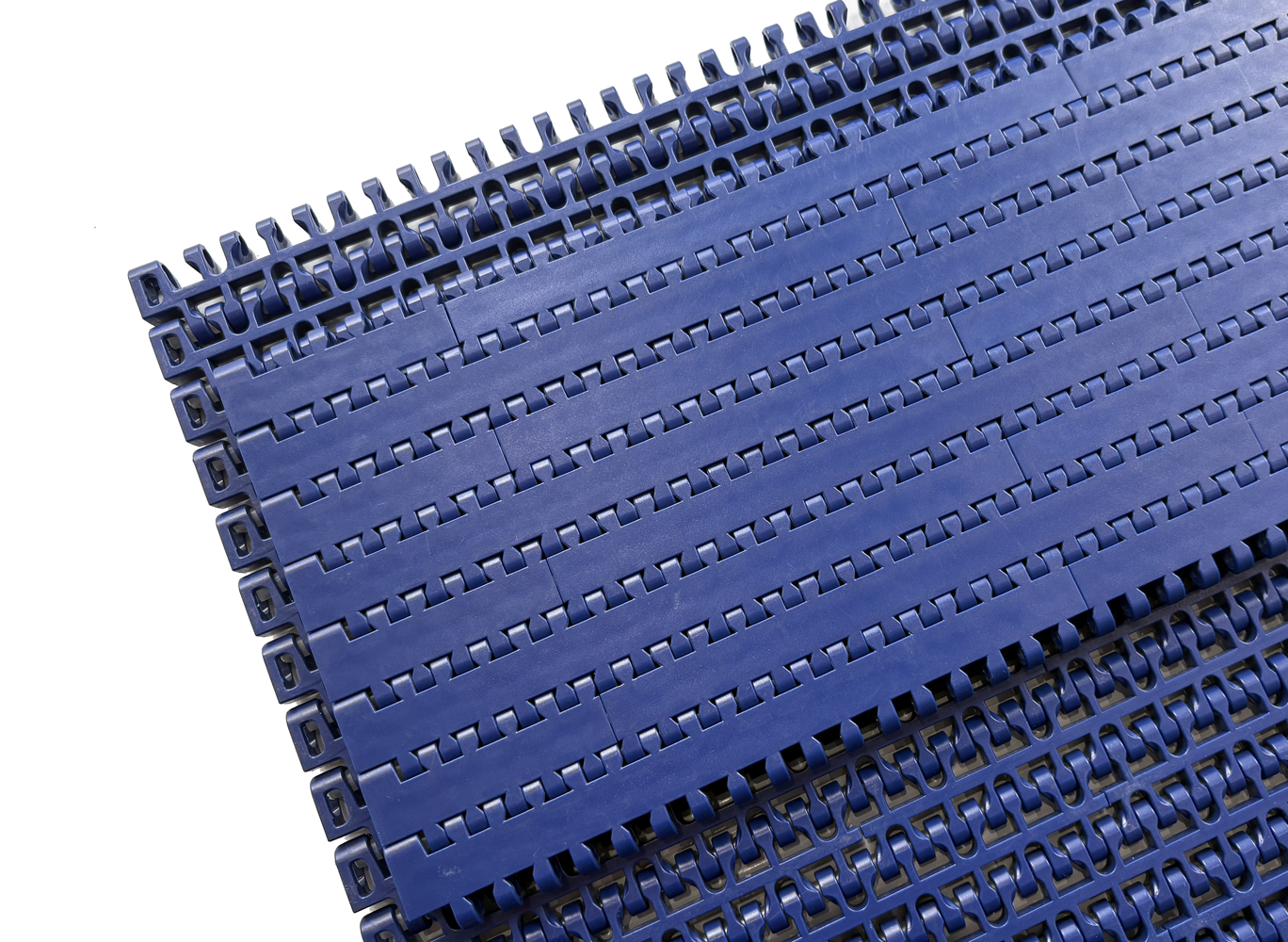

YY-1100 Modular belt
1.It is mainly applicable to the transportation systems of pharmaceuticals, cosmetics, and small-sized foods.
2.Short pitch conveying is smooth and stable, and it is suitable for environments where there are certain requirements for the stability of the conveying line.
3.Module assembly form, easy to assemble and replace, easy to clean.
