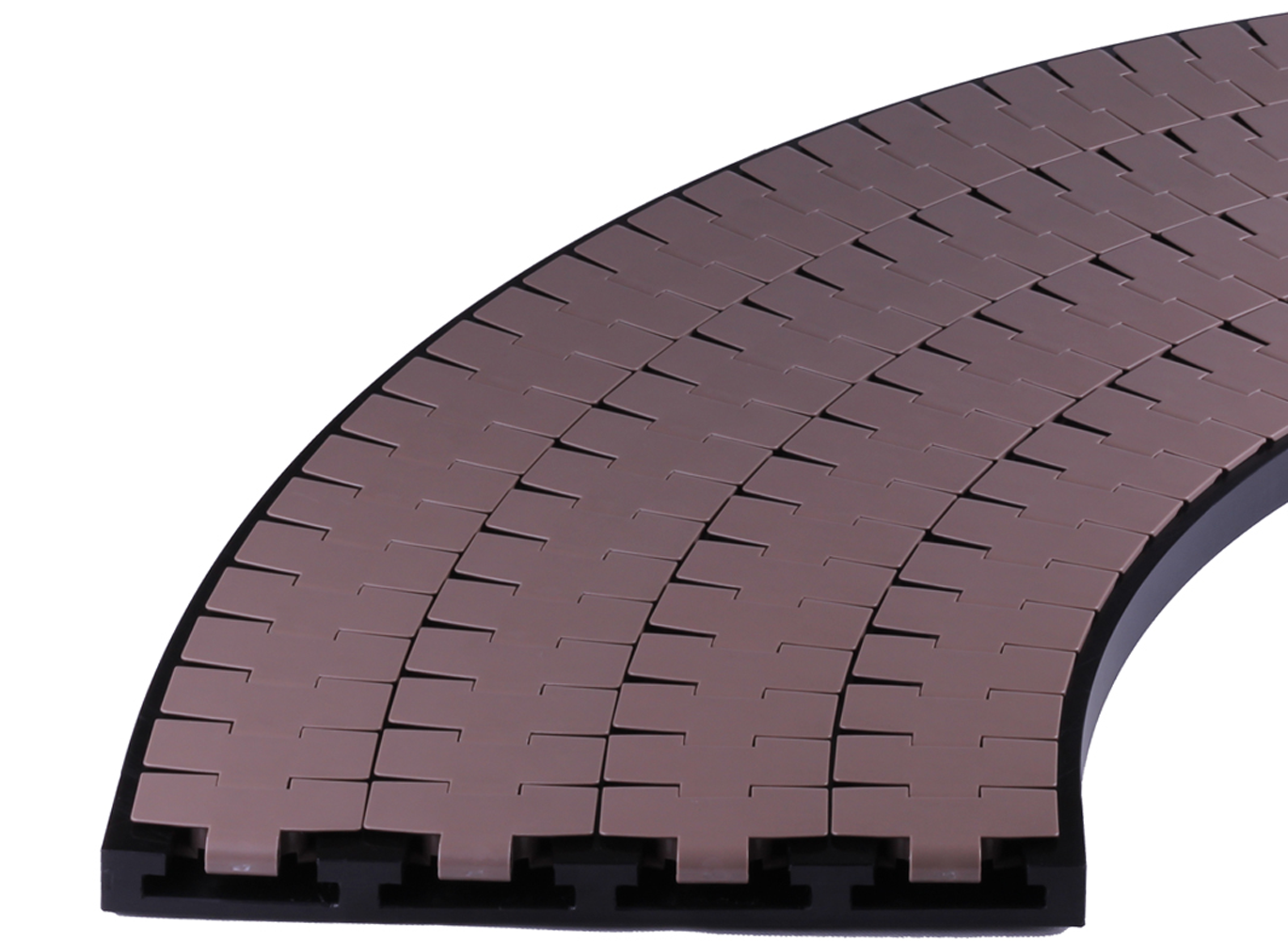

Corner Track for 880TAB/881TAB
Comer track
Corner Track for 880TAB/881TAB Straight track and corner track are suitable for both SS881TAB-K325/450 and 880TAB-K325/K450 Suitable for use as a curved conveyor chain track, specifically designed for the curved section. Easy to install and arrange, with stable conveyor chain operation. Machine-forged and shaped, with pre-drilled mounting holes for easy installation.

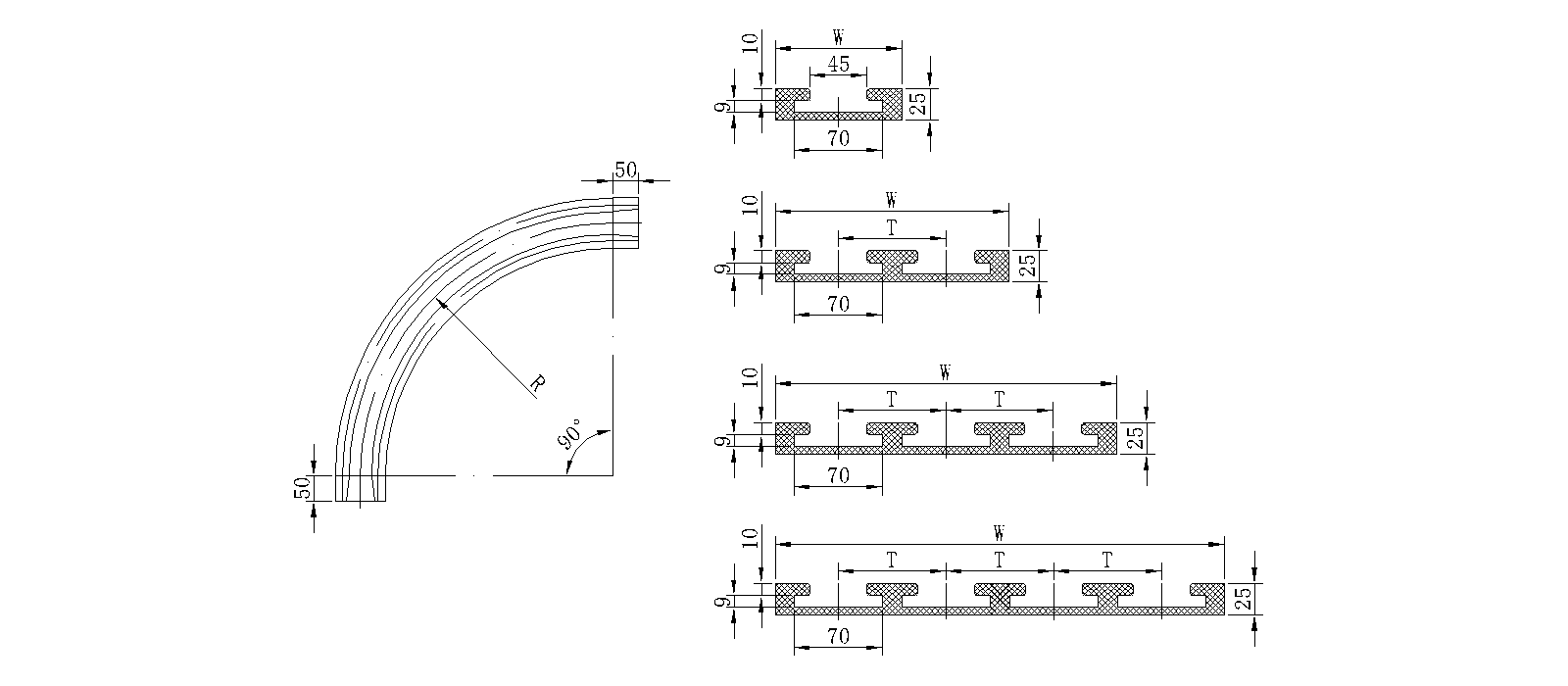

| Item | Code | Min Radius | Width | T |
|---|---|---|---|---|
| 880TAB-K325 single- row | 880TAB-K325-R500-100-1 | 500 | 100 | |
| 880TAB-K325 double-row | 880TAB-K325-R500-185-2 | 500 | 185 | 85 |
| 880TAB-K325 three- row | 880TAB-K325-R500-270-3 | 500 | 270 | 85 |
| 880TAB-K325 four- row | 880TAB-K325-R500-355-4 | 500 | 355 | 85 |
| 880TAB-K450 single- row | 880TAB-K450-R500-130-1 | 500 | 130 | |
| 880TAB-K450 double-row | 880TAB-K450-R500-250-2 | 500 | 250 | 120 |
| 880TAB-K450 three- row | 880TAB-K450-R500-370-3 | 500 | 370 | 120 |
| 880TAB-K450 four- row | 880TAB-K450-R500-490-4 | 500 | 490 | 120 |
| SS881TAB-K600 single- row | SS881TAB-K600-R610-160-1 | 610 | 160 | |
| SS881TAB-K600 double-row | SS881TAB-K600-R610-320-2 | 610 | 320 | 160 |
| SS881TAB-K750 three- row | SS881TAB-K750-R610-200-1 | 610 | 200 | |
| SS881TAB-K750 four- row | SS881TAB-K750-R610-400-2 | 610 | 400 | 200 |
Corner Track for 880TAB/881TAB
Material: UHMW-PE,
color: black.
Radian:
15
℃
~
90
℃
.
Straight track and corner track are suitable for both SS881TAB-K325/450 and 880TAB-K325/K450
Suitable for use as a curved conveyor chain track, specifically designed for the curved section.
Easy to install and arrange, with stable conveyor chain operation.
Machine-forged and shaped, with pre-drilled mounting holes for easy installation.
Specification:
Code Identification ： Chain Code+Center Radius+Width+ Number of rows
