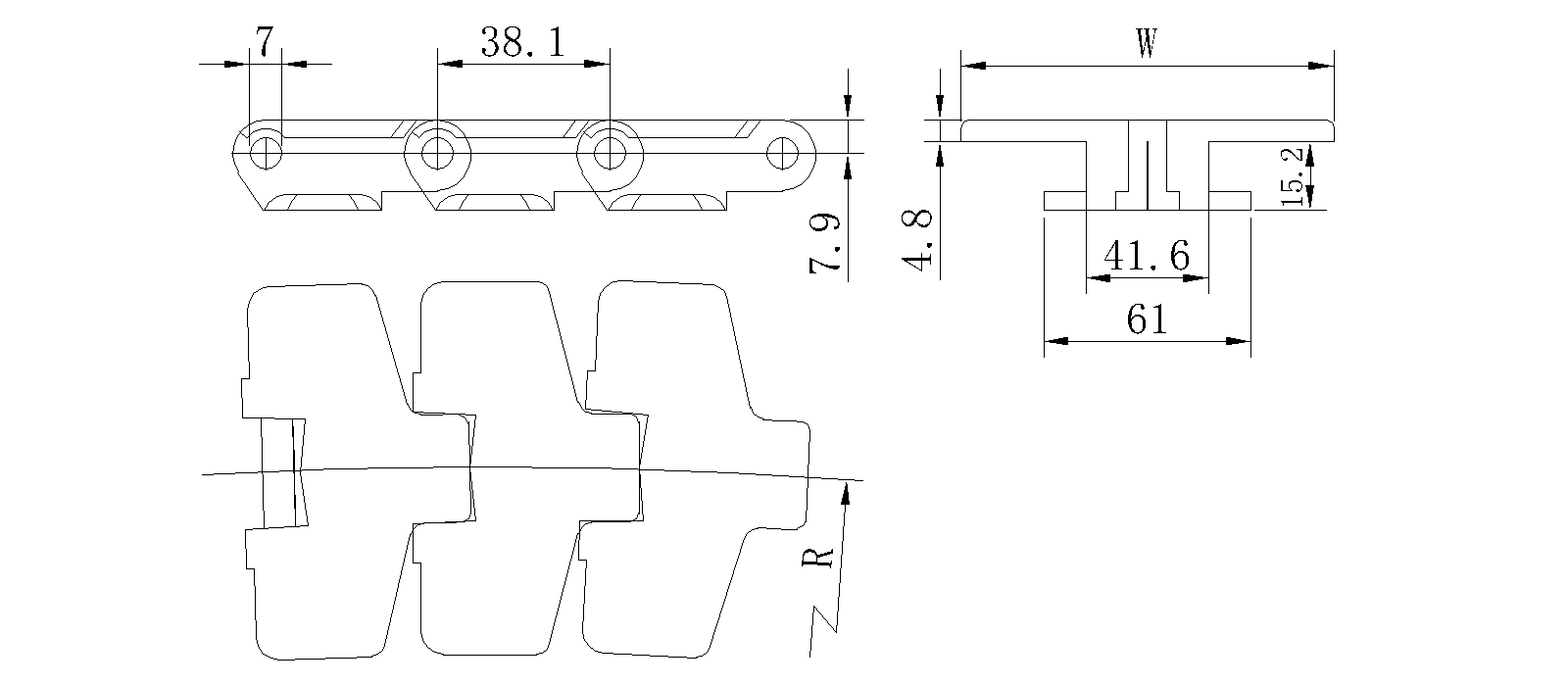

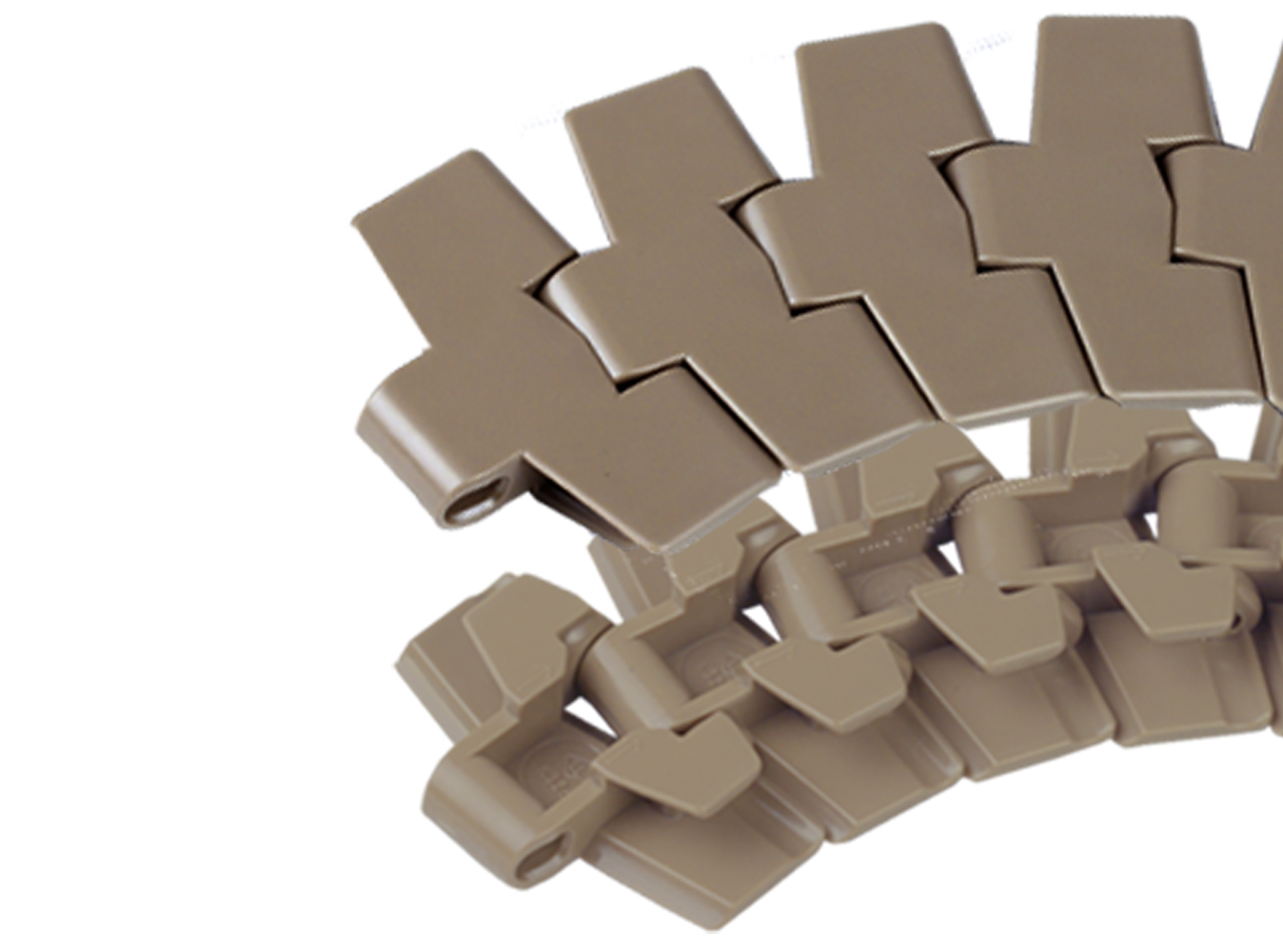

880TAB small side-bent chain Series
Plastic table top chain
880TAB small side-bent chain Series Main application: food and beverage industry such as transportation of bottles, cans etc
| Code | Width（mm） | Weight（Kg/m） | Backflex radius | Turning Radius |
|---|---|---|---|---|
| 880TAB-RT-K325 | 82.6 | 1.04 | 75 | 200 |
| 880TAB-RT-K450 | 114.3 | 1.15 | 75 | 200 |

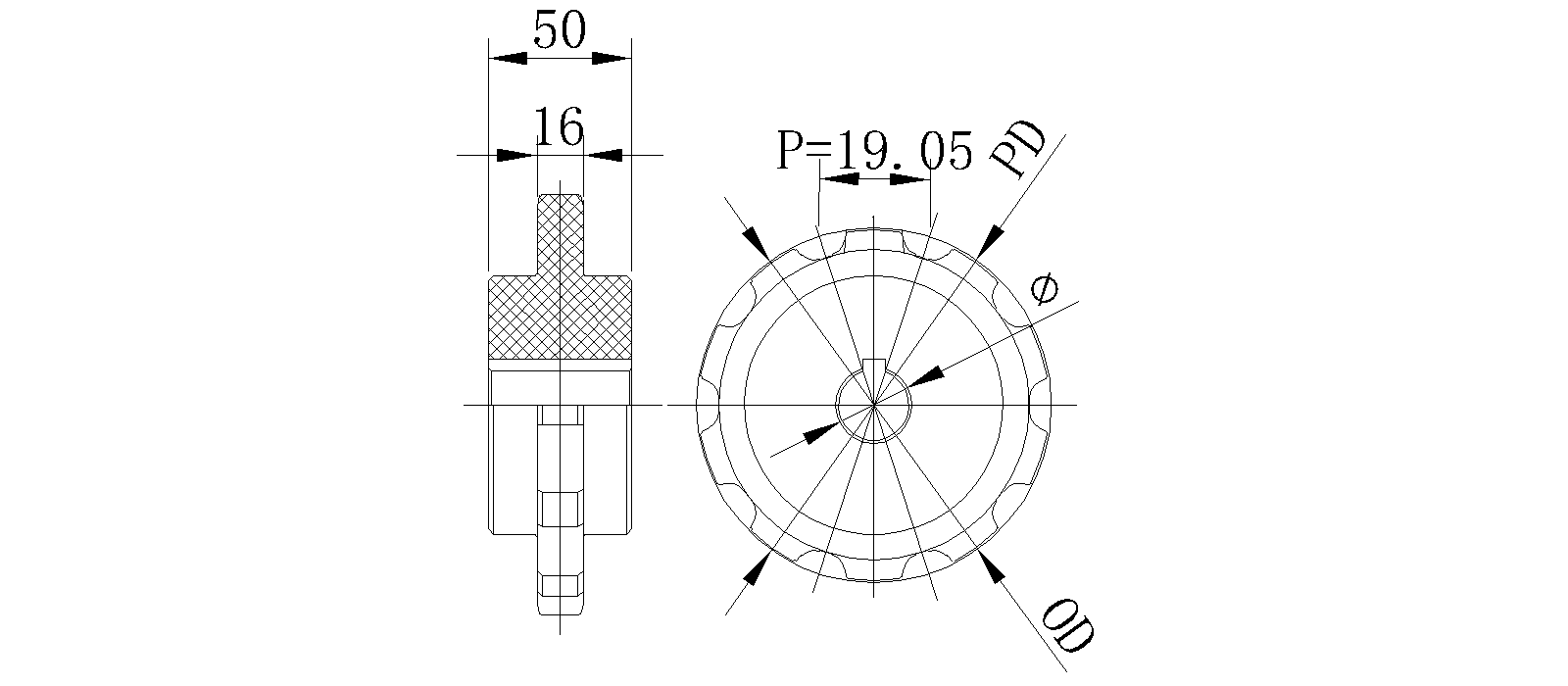

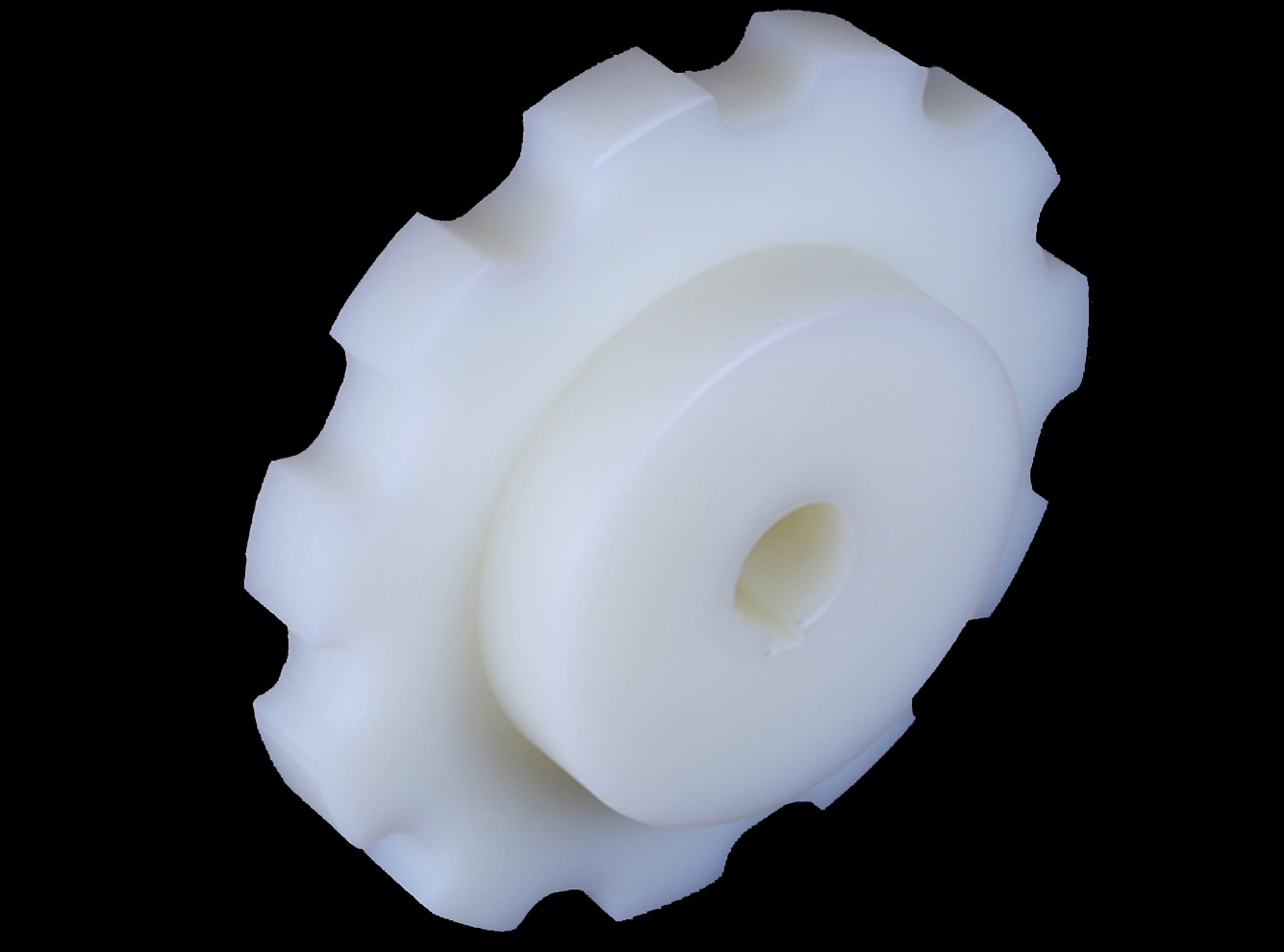

880 Series machined drive sprocket
NylonPA6, Machined,high precision,matching well Good strength, can be used in heavy load transport
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 10 | 123.3 | 122.4 | 20/25/30/35 |
| 11 | 135.2 | 134.9 | 25/30/35/40 |
| 12 | 147.2 | 147.3 | 25/30/35/40 |

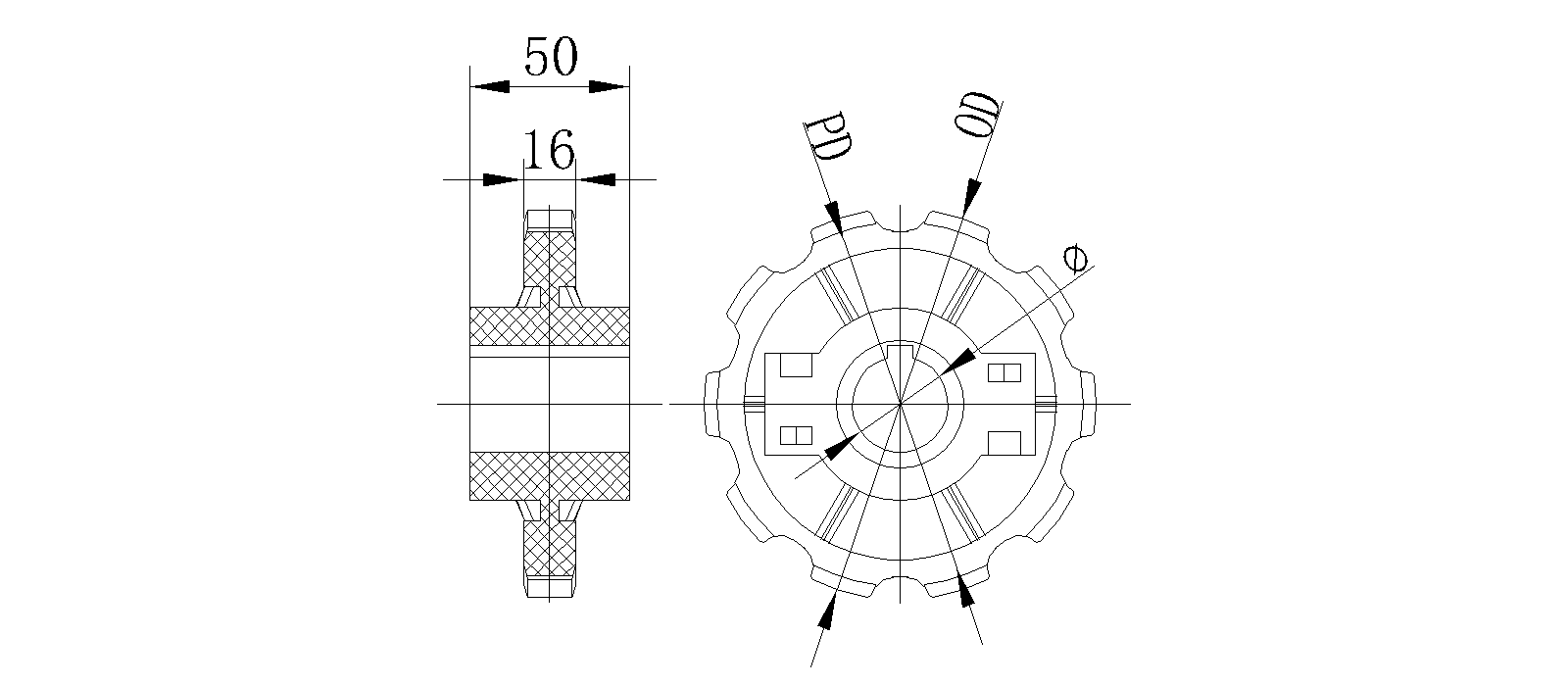

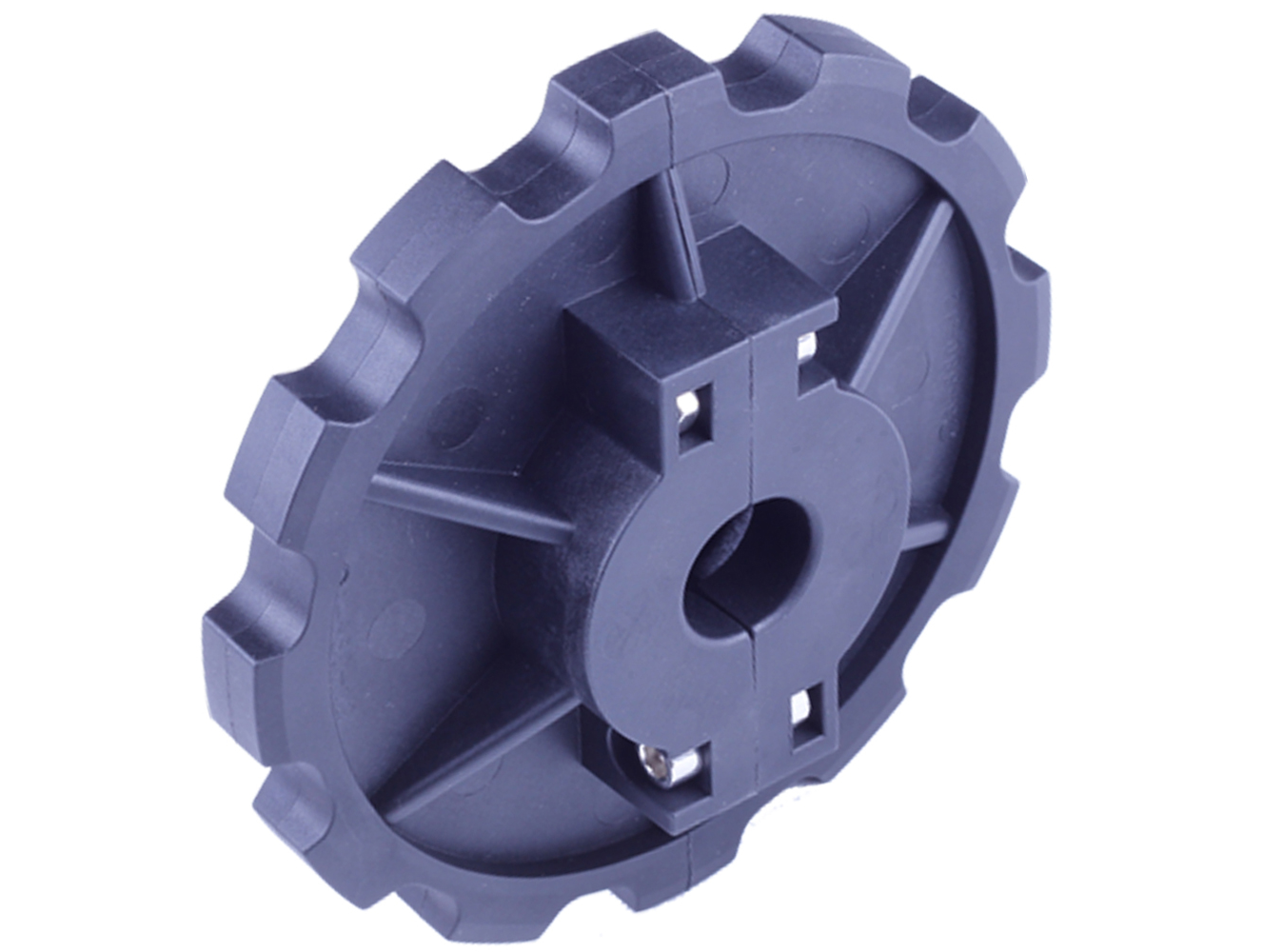

880 Series molded split drive sprocket
Material: Nylon with glass fiber, excellent mechanical strength and good wear resistance
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 10 | 123.3 | 122.4 | 20/25/30/35 |
| 11 | 135.2 | 134.9 | 25/30/35/40 |
| 12 | 147.2 | 147.3 | 25/30/35/40 |
880TAB small side-bent chain Series
Chain Mat：POM
Pin Mat：Stainless Steel
Color：Brown
Temprature：-30℃～+90℃
Maximum Speed：lubricant 50m/min；Desiccant 30m/min
Working Load：(25℃) 2100 N,Maximum length 9 m
Main application: food and beverage industry such as transportation of bottles, cans etc
