2600/2600TAB Crafe conveyor chains
Multiflex chains
2600/2600TAB Crafe conveyor chains Suitable for turntable conveyor lines for products such as pallets and crates. The conveyor line is easy to clean. Chain-type pin connection, allowing for adding or replacing chain links as needed. For any other requirements (applications), please feel free to call us for consultation.

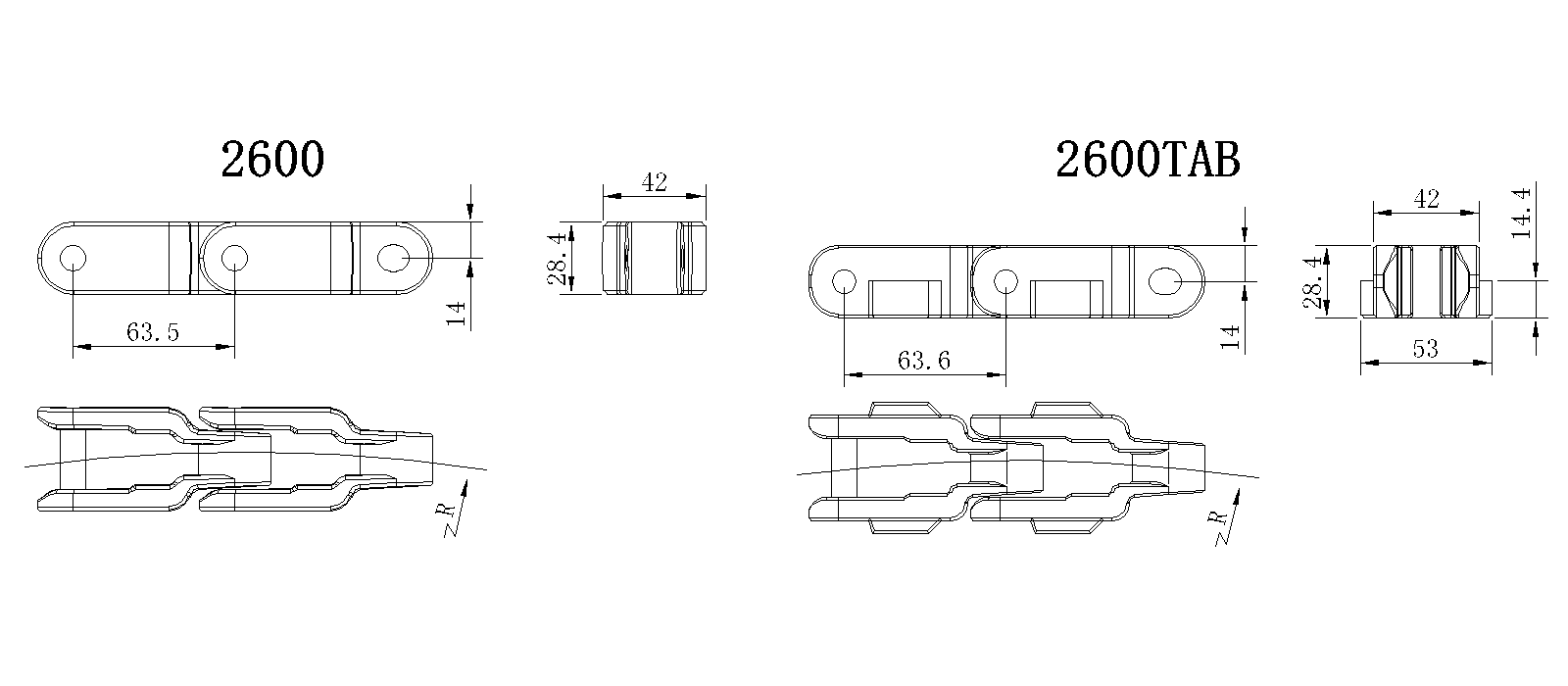

2600/2600TAB Crafe conveyor chains
| Code | Width（mm） | Weight（Kg/m） | Backflex R（mm） | Min. radius（mm） |
|---|---|---|---|---|
| 2600 | 42 | 1.3 | 75 | 600 |
| 2600TAB | 42 | 1.4 | 75 | 600 |

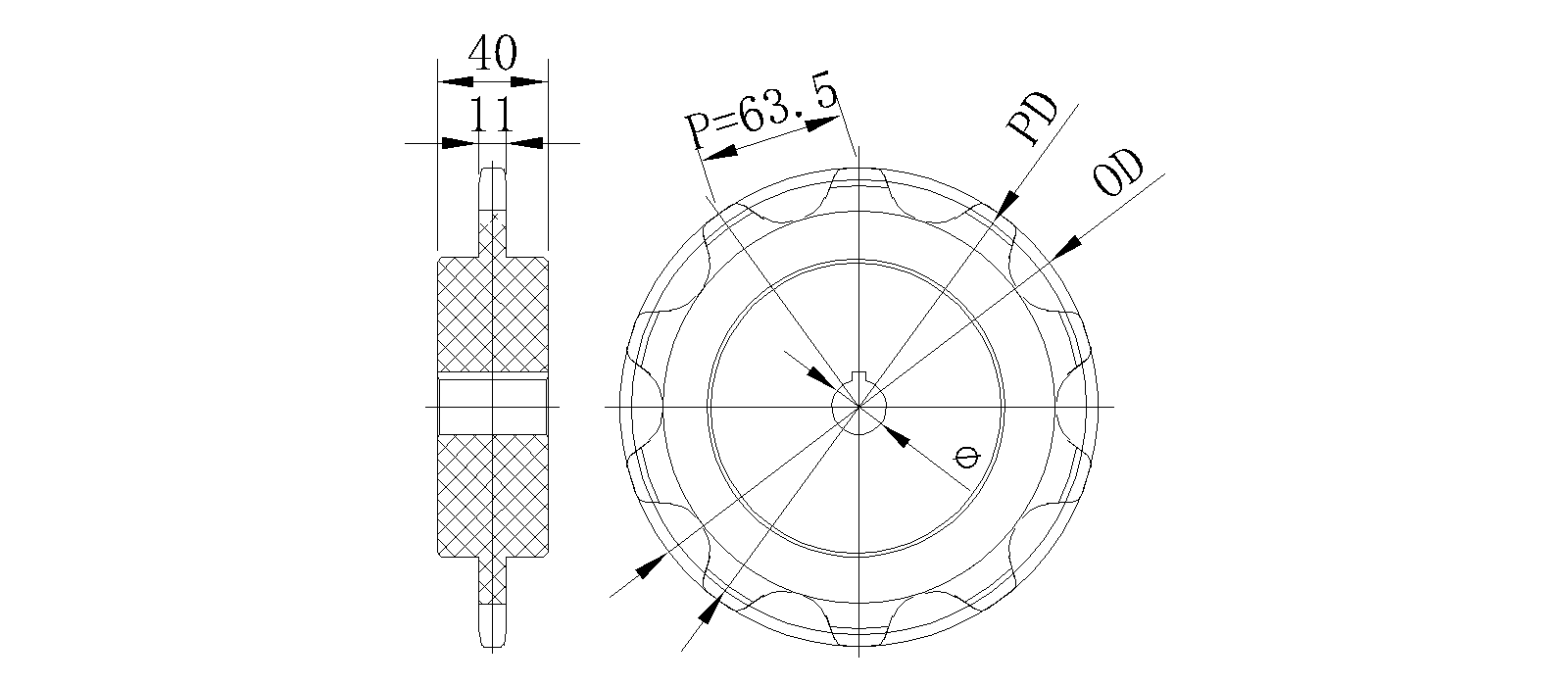

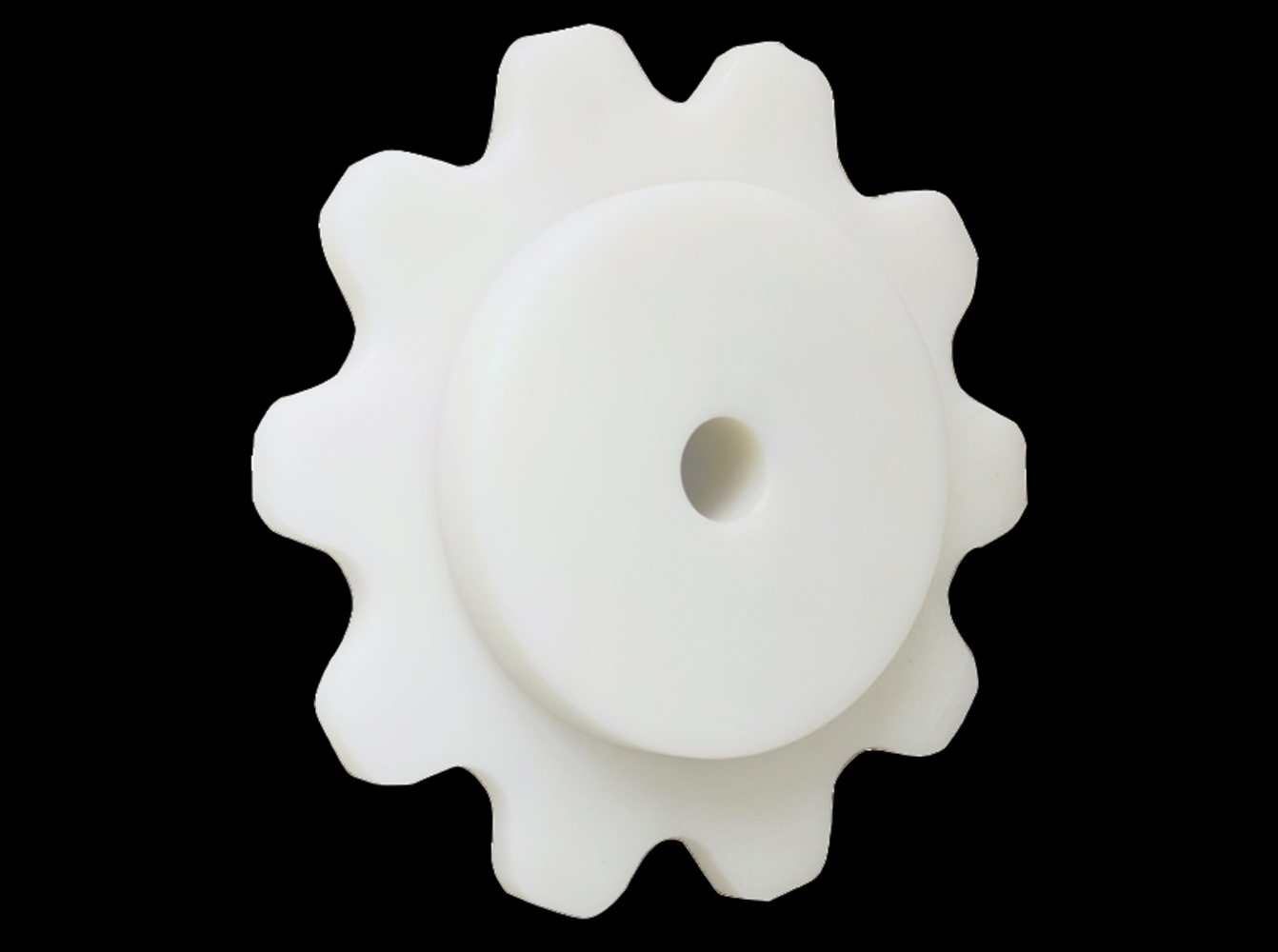

2600/2600TAB Series machined drive sprocket
NylonPA6, Machined,high precision,matching well Good strength, can be used in heavy load transport
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 8 | 165.9 | 175 | 25/30/35/40 |
| 9 | 185.66 | 194 | 25/30/35/40 |
| 10 | 205.49 | 213 | 25/30/35/40 |
| 11 | 225.39 | 233 | 25/30/35/40 |
| 12 | 245.35 | 252 | 25/30/35/40 |

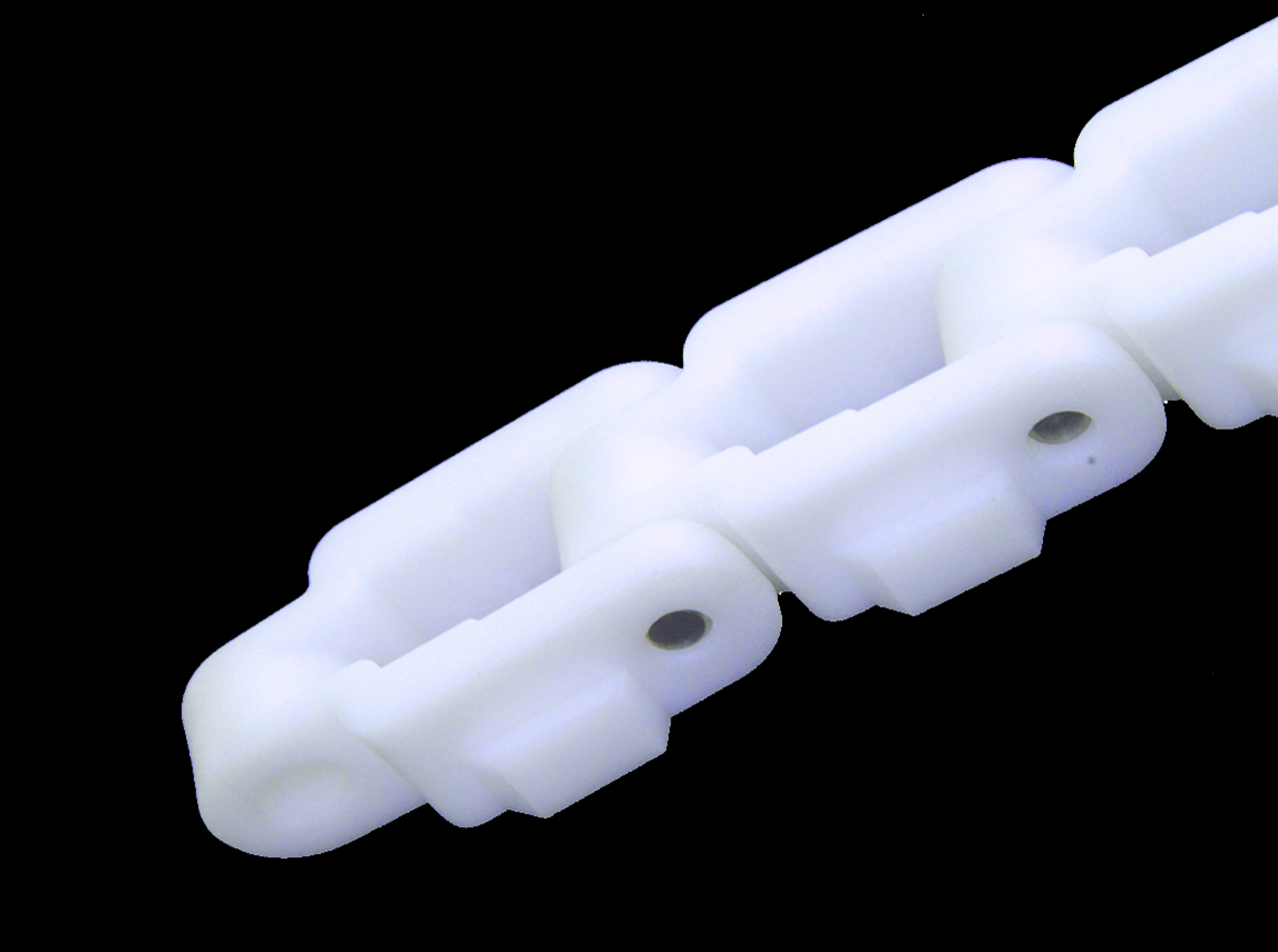

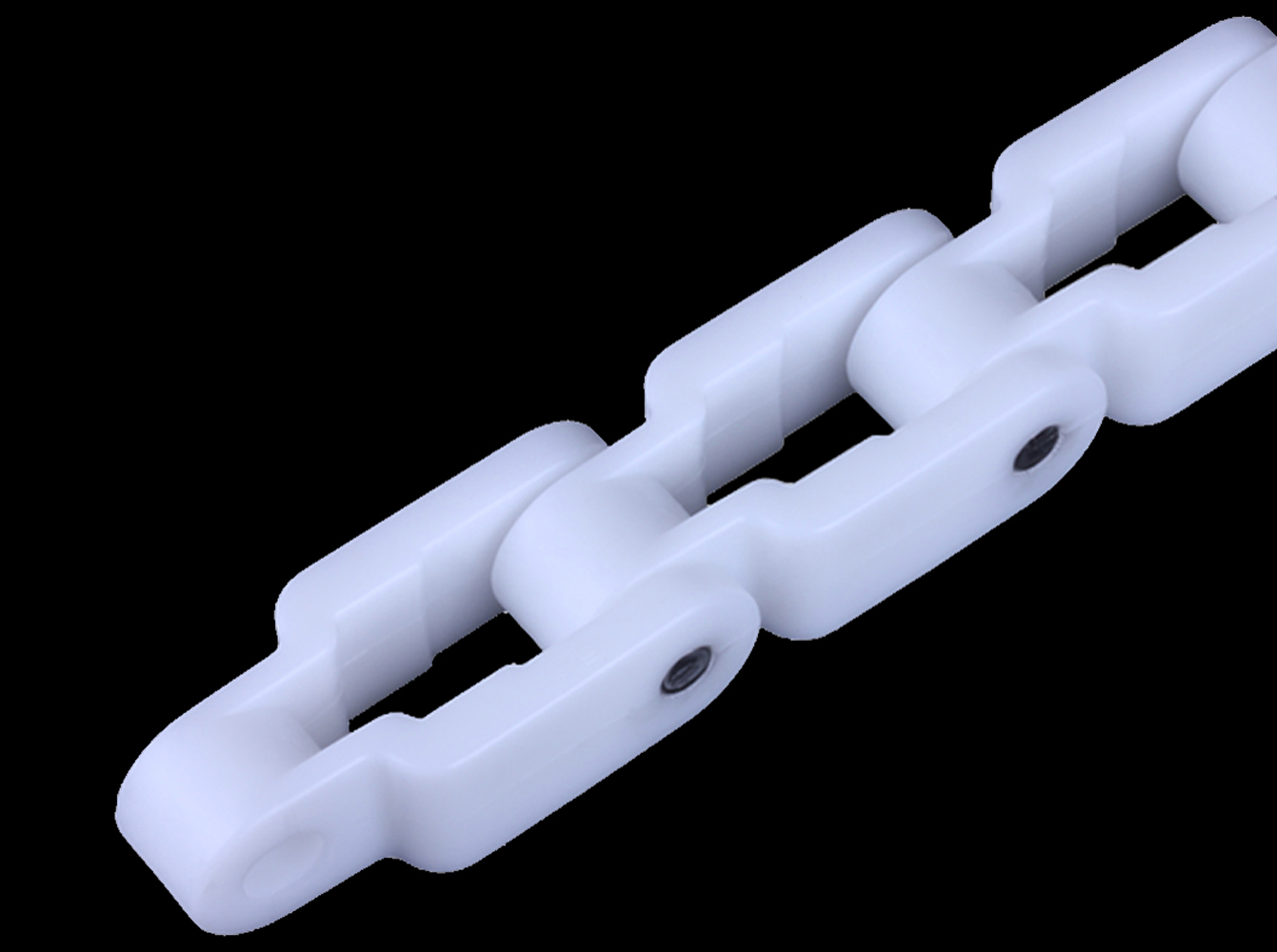

2600 /2600TAB Crafe conveyor chains
Chain Mat：POM
Pin Mat：Stainless Steel
Color： White
Temprature：-30℃～+90℃
Maximum Speed：lubricant 6 0m/min；Desiccant 3 4 0m/min
Working Load：(25℃) 3000 N,Maximum length 12m
Suitable for turntable conveyor lines for products such as pallets and crates.
The conveyor line is easy to clean.
Chain-type pin connection, allowing for adding or replacing chain links as needed.
For any other requirements (applications), please feel free to call us for consultation.
