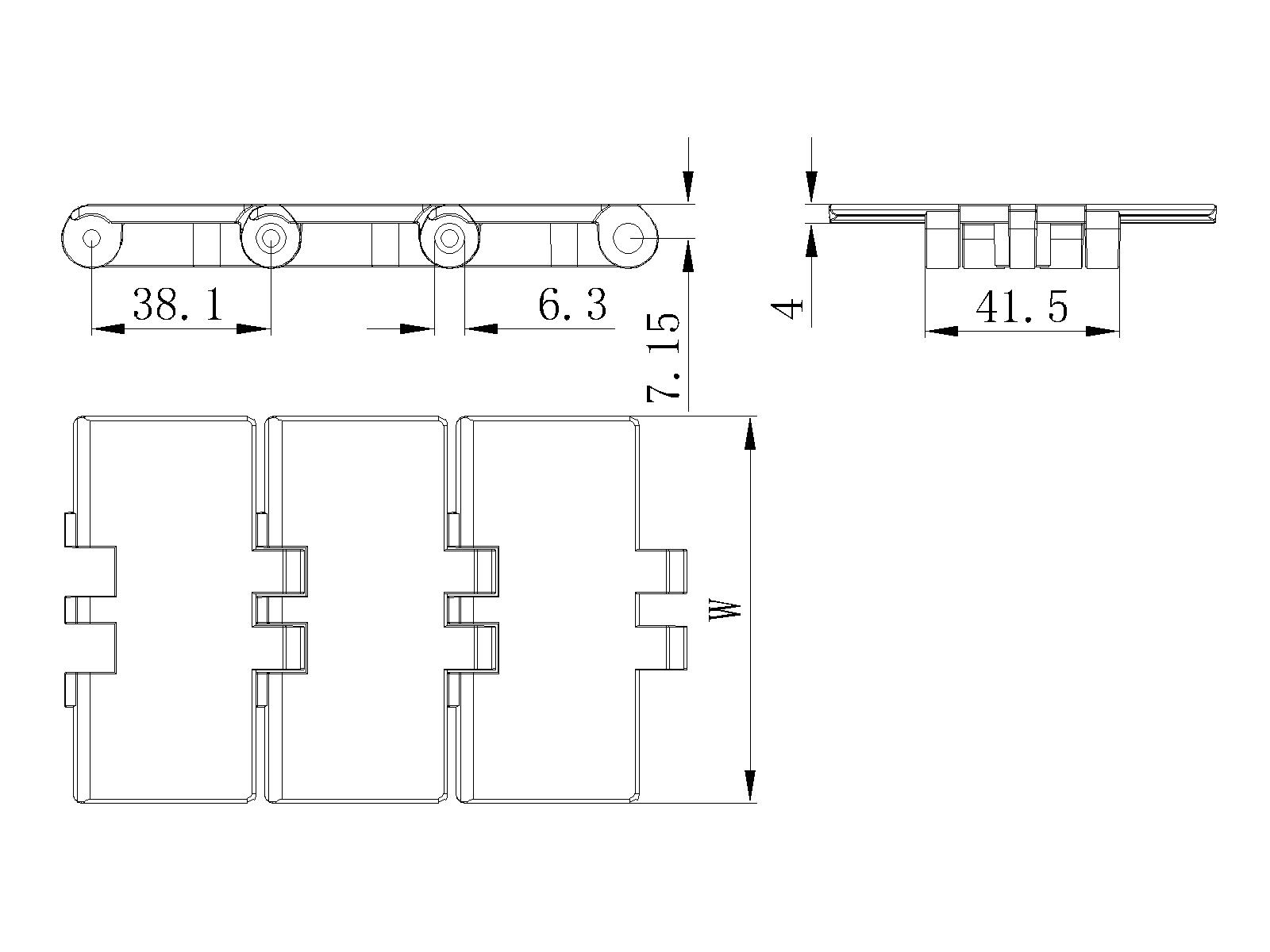

820 Flat-top Chain series
Plastic table top chain
820 Series Single Hinge Chain Main application: food and beverage industry such as transportation of bottles, cans etc
820 Flat-top Chain series
| Code | Width(mm) | Weight(Kg/m) | Backflex radius |
|---|---|---|---|
| 820-K250 | 63.5 | 0.69 | 50 |
| 820-K325 | 82.6 | 0.82 | 50 |
| 820-K350 | 88.9 | 0.87 | 50 |
| 820-K400 | 101.6 | 0.95 | 50 |
| 820-K450 | 114.3 | 1.00 | 50 |
| 820-K500 | 127 | 1.10 | 50 |
| 820-K600 | 152.4 | 1.20 | 50 |
| 820-K750 | 190.5 | 1.44 | 50 |

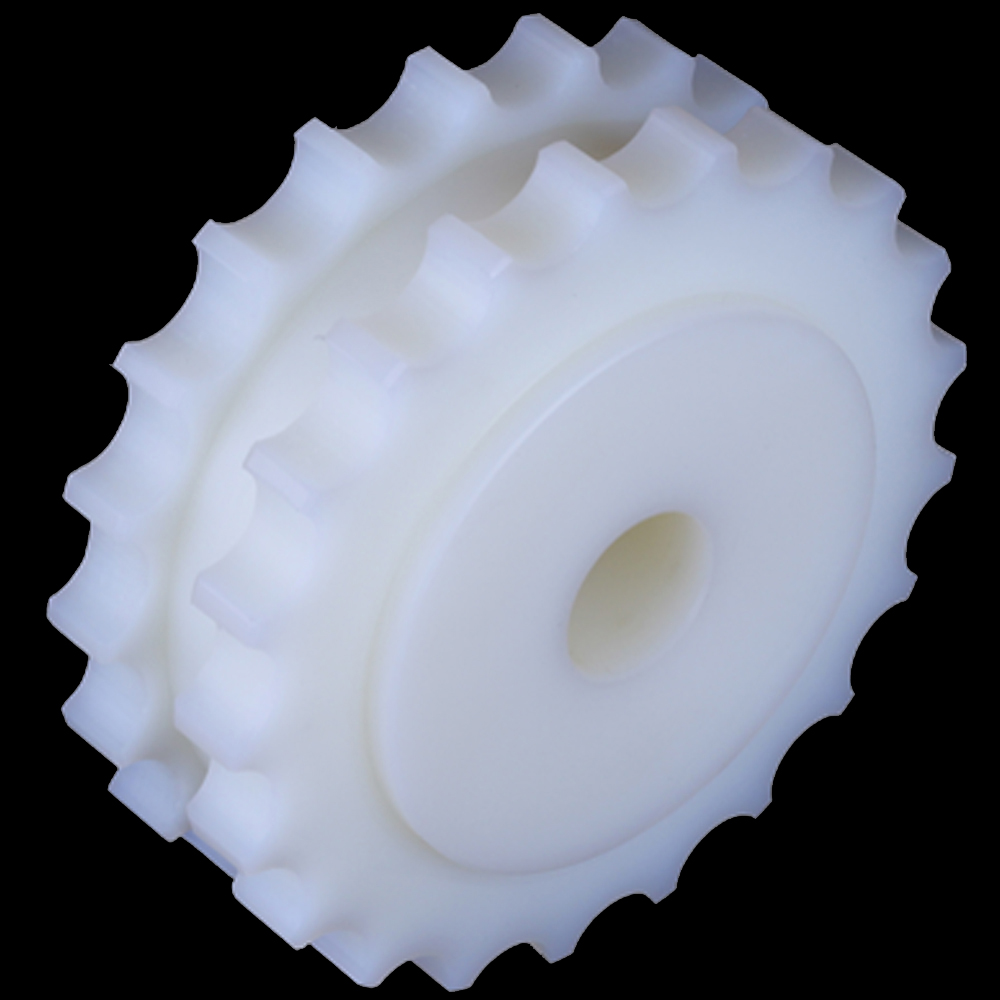

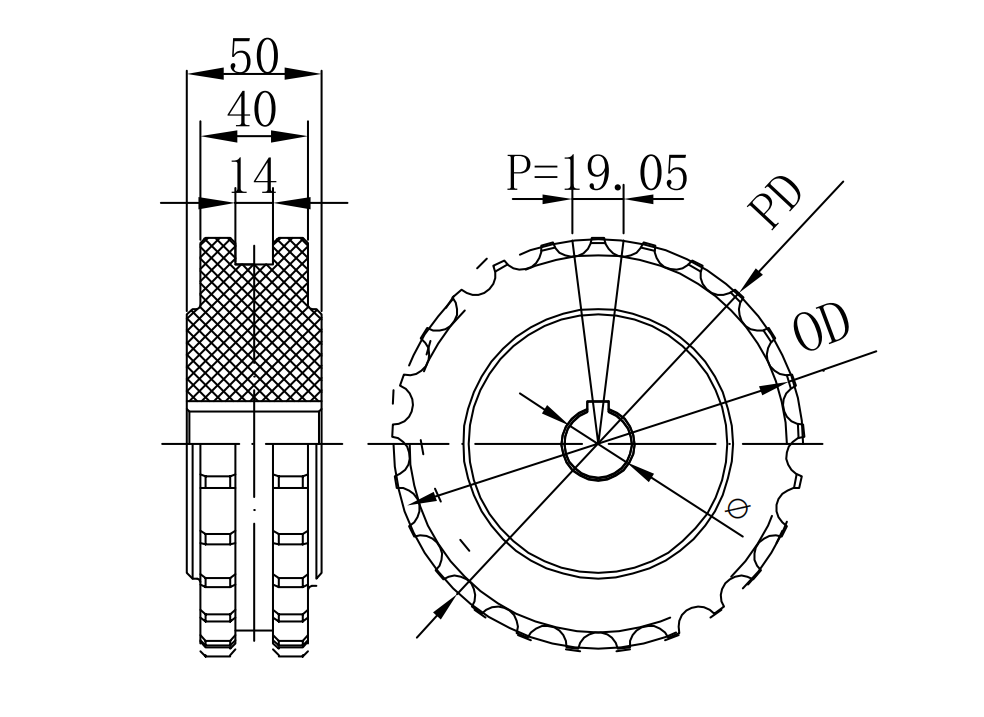

820 Series Machined Drive Sprocket
Nylon PA6, Machined, high precision, matching well. Good strength, can be used in heavy load transport.
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 15 | 91.6 | 92.2 | 20/25/30 |
| 17 | 103.7 | 104.7 | 20/25/30 |
| 19 | 115.7 | 117.0 | 20/25/30/35 |
| 21 | 127.8 | 129.0 | 25/30/35/40 |
| 23 | 139.9 | 140.7 | 25/30/35/40 |
| 25 | 152.0 | 152.0 | 25/30/35/40 |

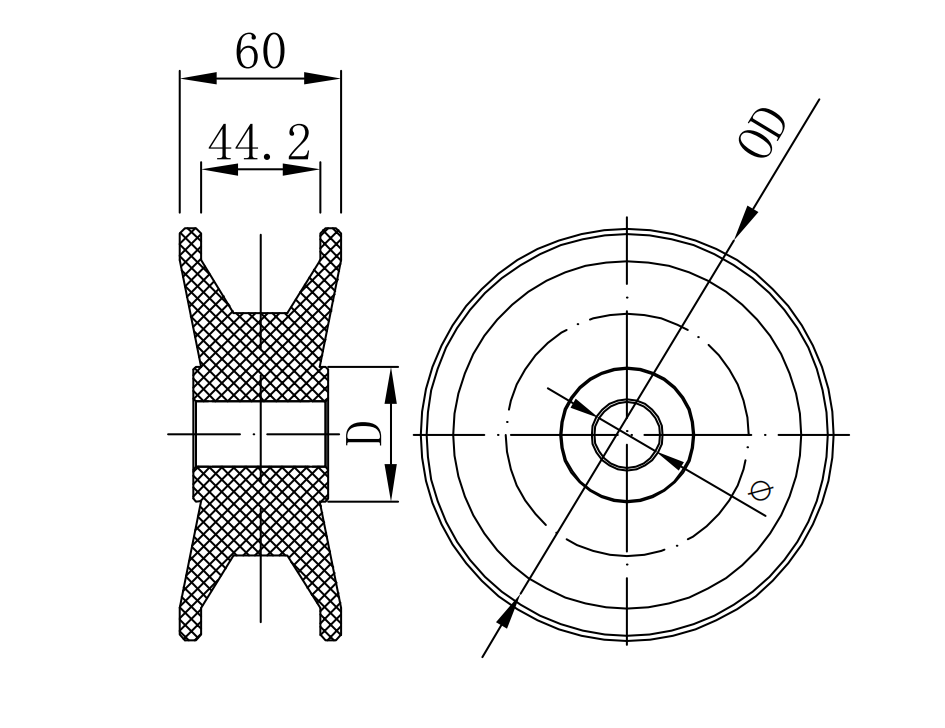

820 Series Machined Idler Sprocket
Nylon PA6, Machined, high precision, matching well. Good strength, can be used in heavy load transport.
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 15 | 50 | 93.0 | 20/25/30 |
| 17 | 50 | 105.0 | 20/25/30 |
| 19 | 60 | 117.0 | 20/25/30/35 |
| 21 | 70 | 131.0 | 25/30/35/40 |
| 23 | 80 | 140.7 | 25/30/35/40 |
| 25 | 90 | 155.0 | 25/30/35/40 |

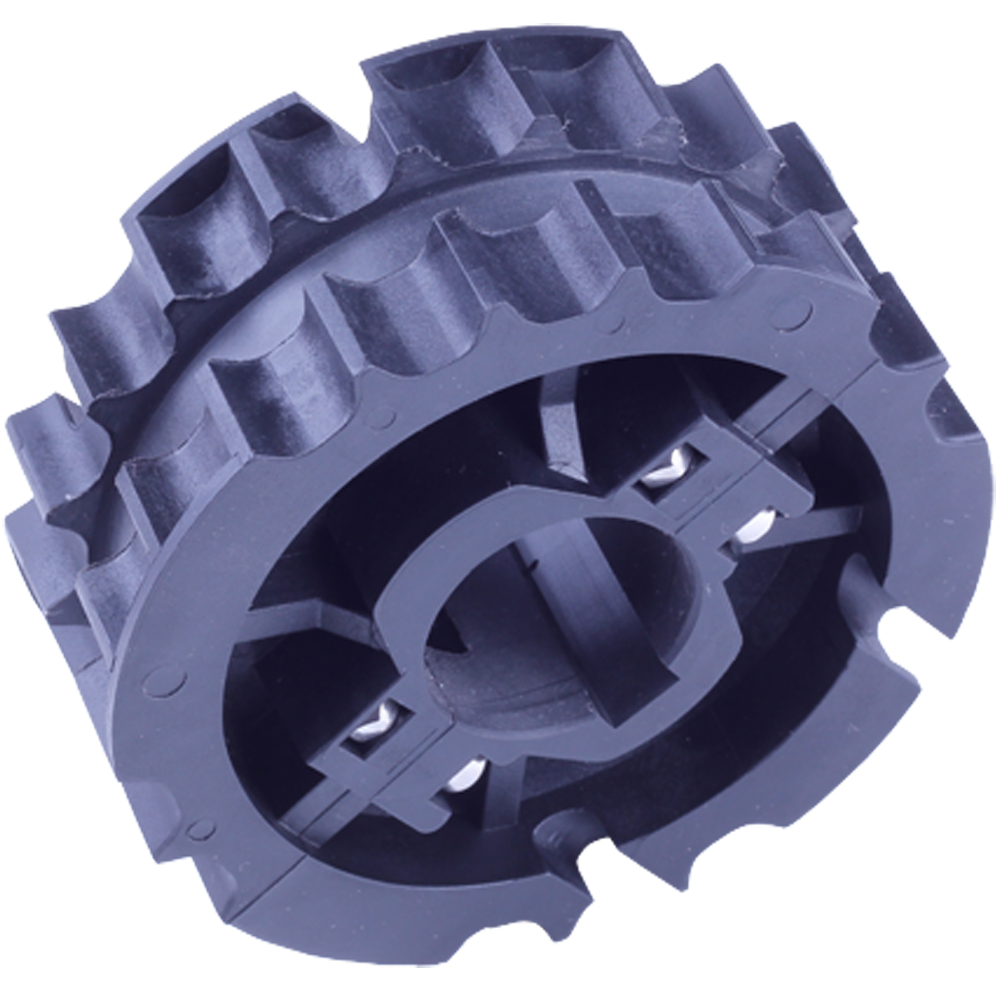

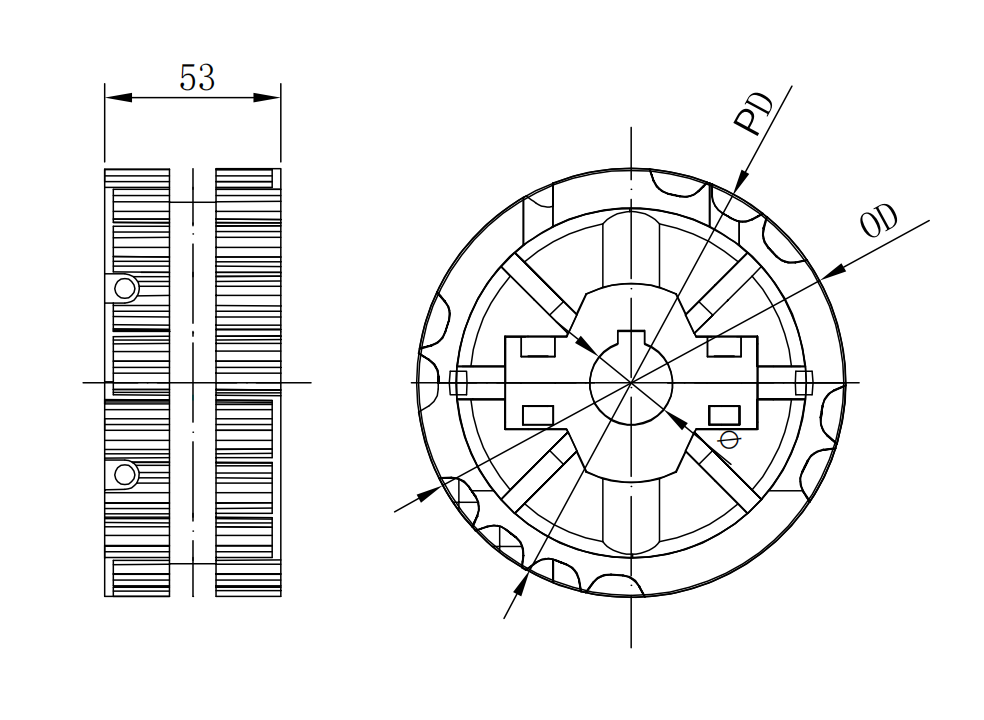

820 Series Molded Split Drive Sprocket
Material: Nylon with glass fiber, excellent mechanical strength and good wear resistance.
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 19 | 115.7 | 117.0 | 20/25/30/35 |
| 21 | 127.8 | 129.0 | 25/30/35/40 |
| 23 | 139.9 | 140.7 | 25/30/35/40 |
| 25 | 152.0 | 152.0 | 25/30/35/40 |

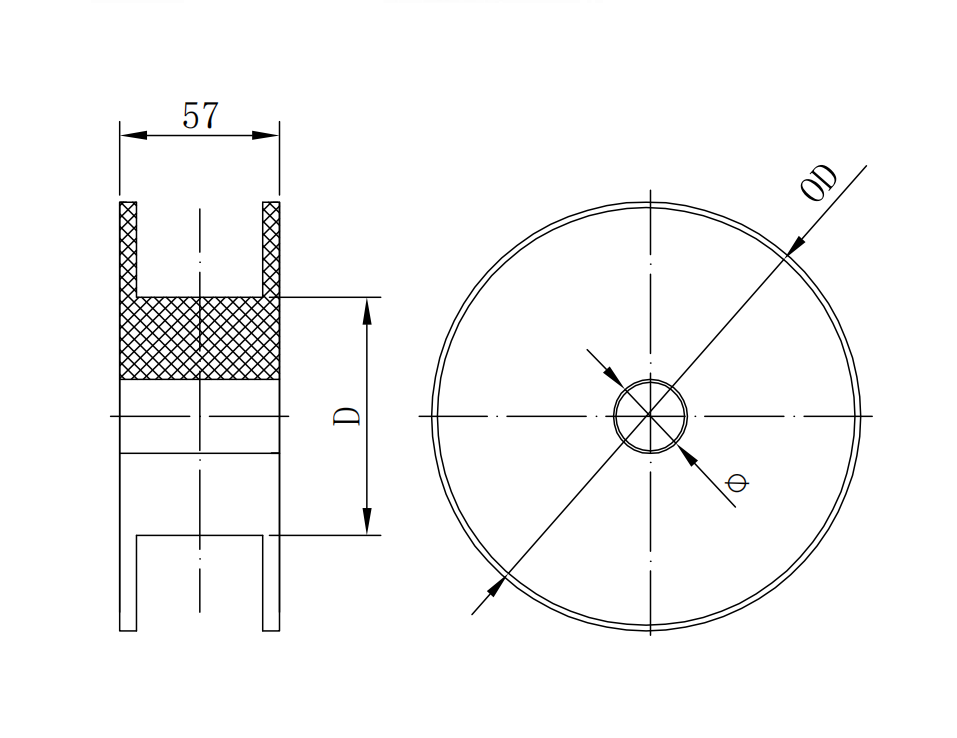

820 Series Molded Split Idler Sprocket
Material: Nylon with glass fiber, excellent mechanical strength and good wear resistance.
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 19 | 60 | 117.0 | 20/25/30/35 |
| 21 | 70 | 131.0 | 25/30/35/40 |
| 23 | 80 | 140.7 | 25/30/35/40 |
| 25 | 90 | 155.0 | 25/30/35/40 |

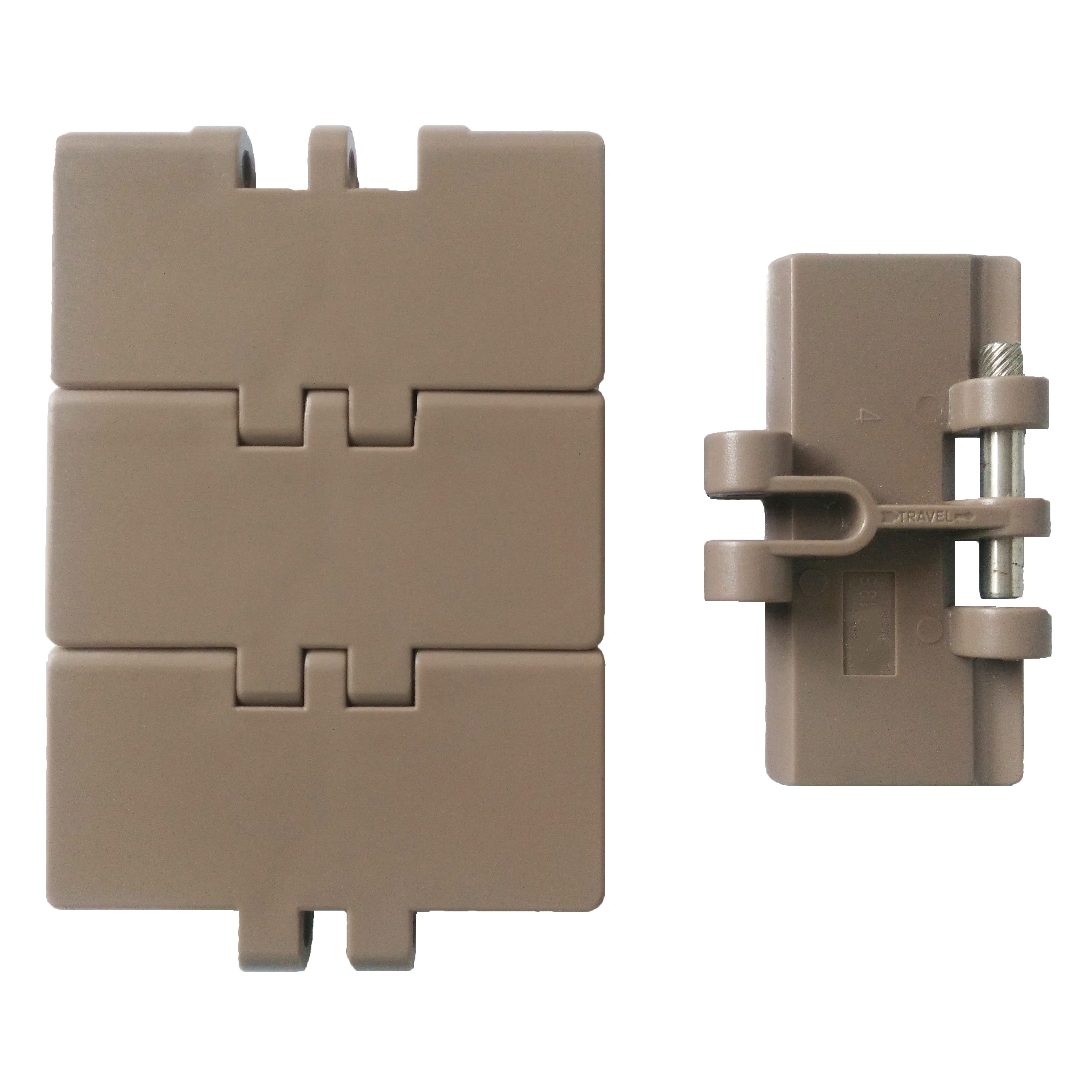

820 Flat-top Chain series
The 820 Series Single Hinge Chain is manufactured from high-quality POM (Polyoxymethylene) with stainless steel pin, designed for reliable performance in food and beverage industry applications.
Key Features
- Maximum speed up to 50m/min with lubricant
- Working load capacity ≤1230N at ≤25°C
- Temperature range: -30℃～+90℃
- Maximum length: 12m
Applications
Ideal for food and beverage industry conveying systems where hygiene and reliability are paramount.
