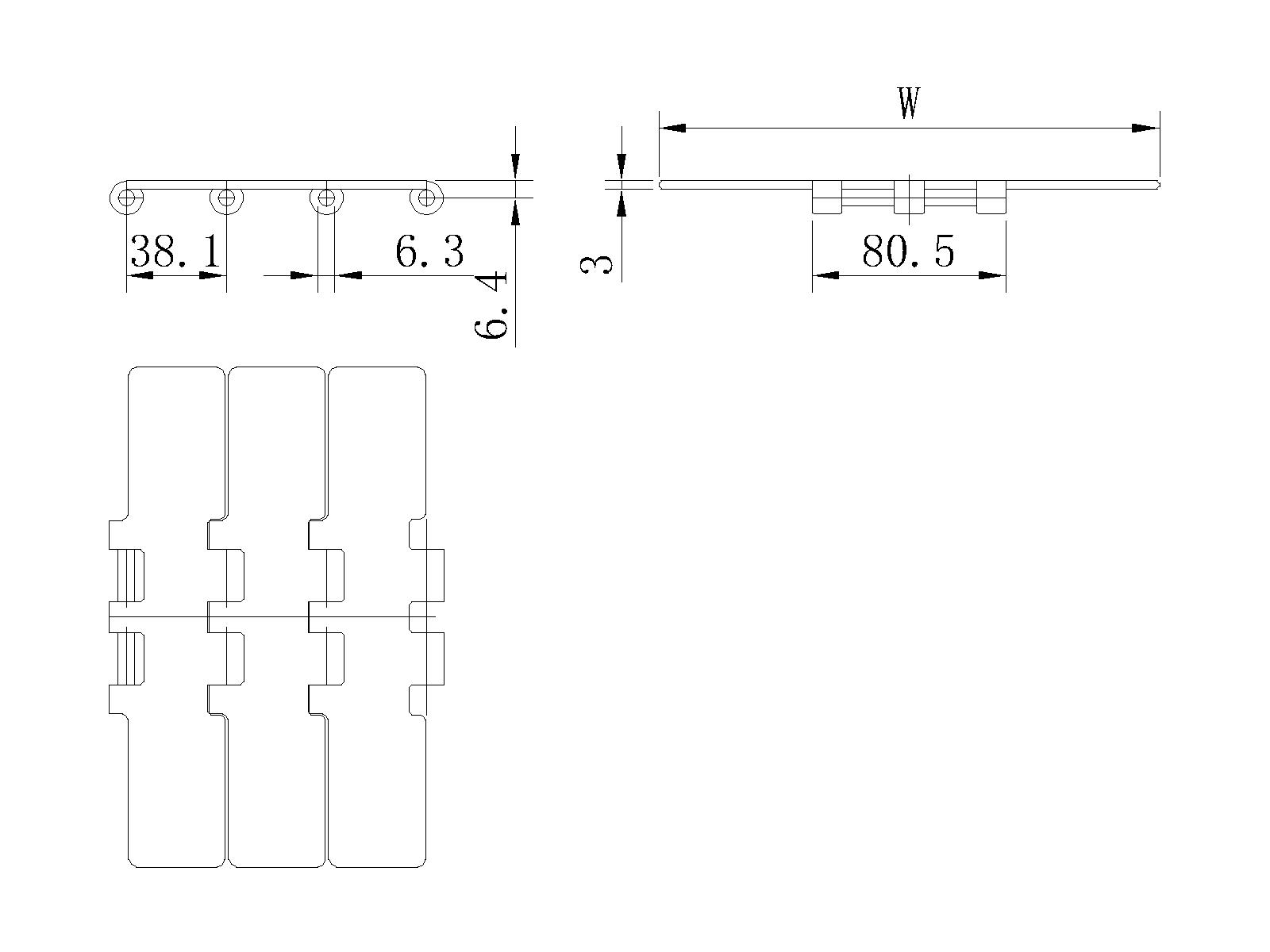

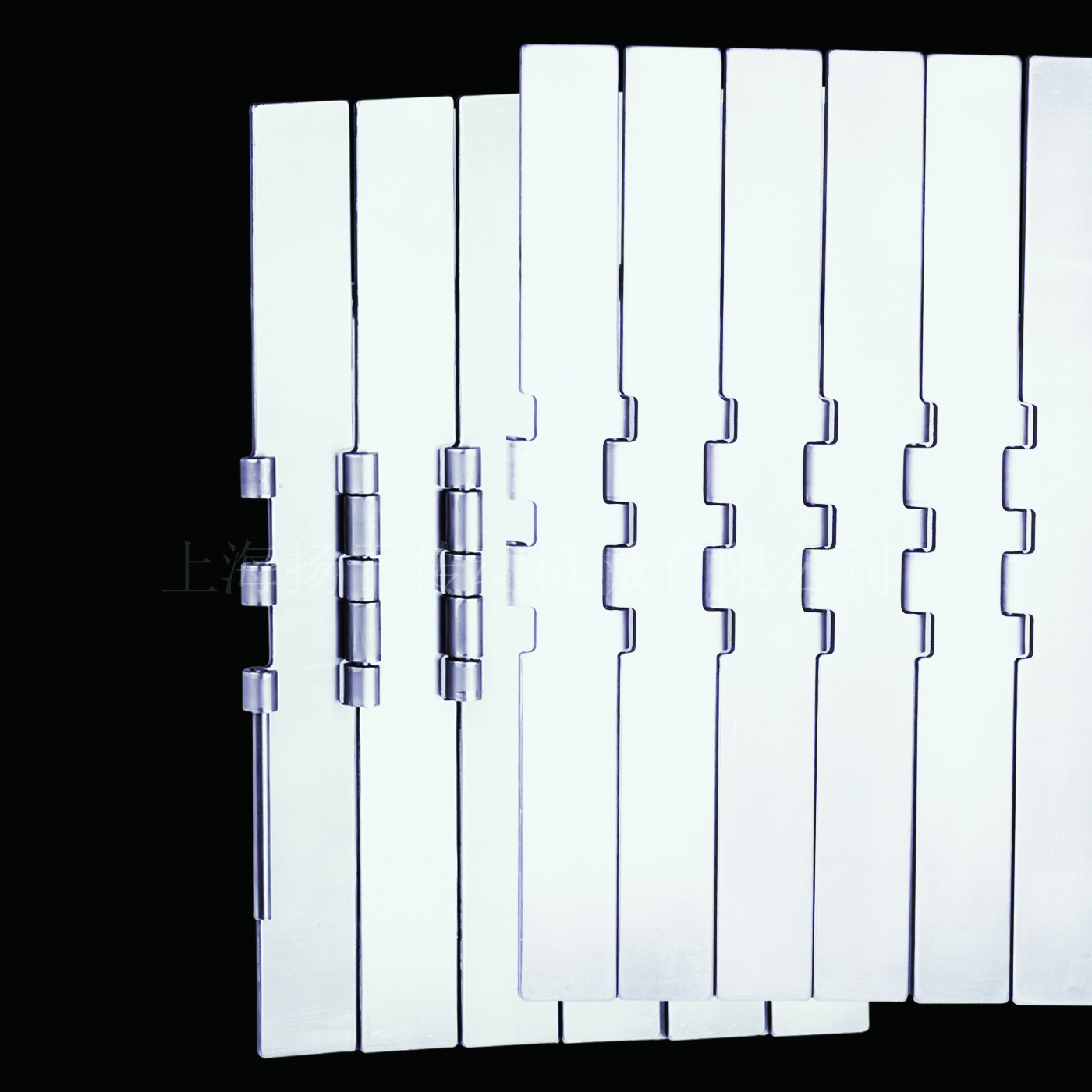

SS802 Straight running steel chains series-Double hinge
Metal flat top chain
SS802 Straight running steel chains-Single hinge-Double hinge Main application: Suitable for straight conveying lines of metal products, glass products, etc.
| Code | Width（mm） | Weight（Kg/m） | Backflex radius |
|---|---|---|---|
| SS802-K750 | 38.1*190.5 | 5.8 | 150 |
| SS802-K1000 | 38.1*254 | 7.2 | 150 |
| SS802-K1200 | 38.1*304.8 | 8.3 | 150 |

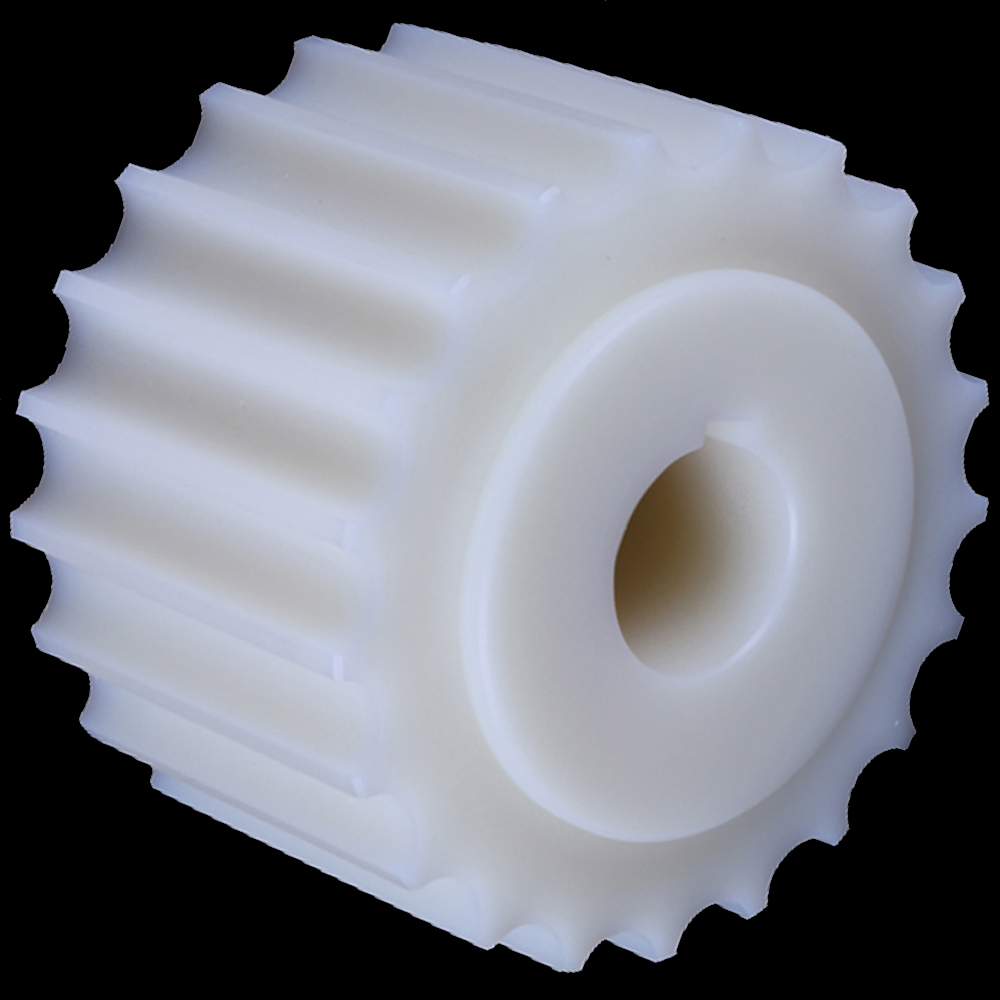

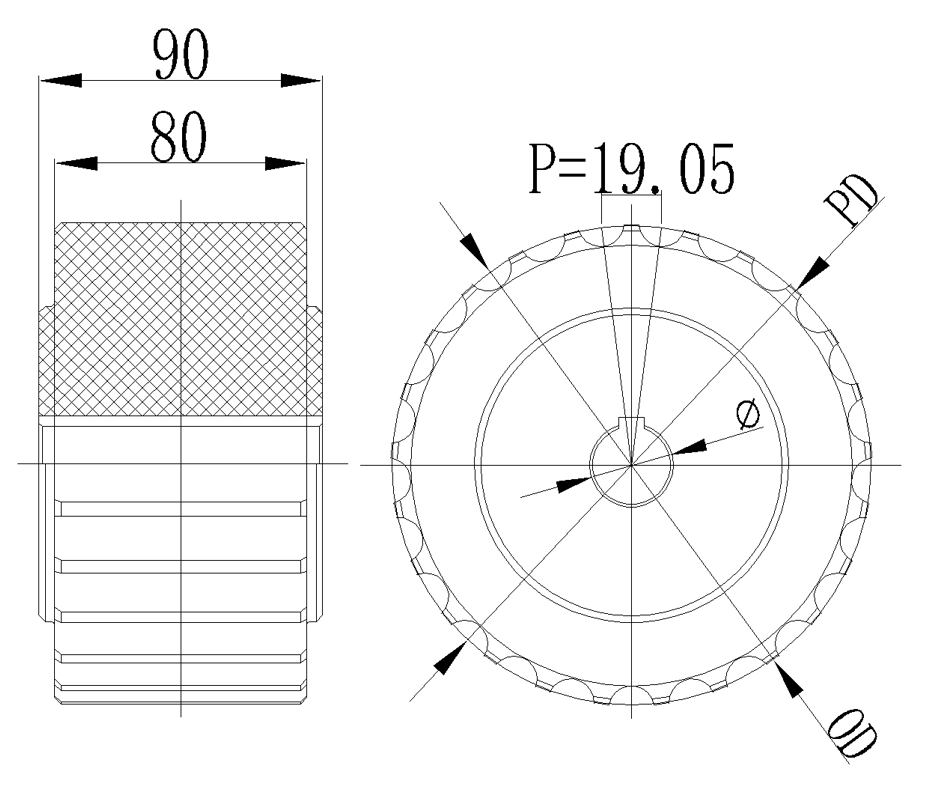

SS802 Series machined drive sprocket
NylonPA6, Machined,high precision,matching well Good strength, can be used in heavy load transport
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 19 | 115.7 | 117.0 | 20/25/30/35 |
| 21 | 127.8 | 129.0 | 25/30/35/40 |
| 23 | 139.9 | 140.7 | 25/30/35/40 |
| 25 | 152.0 | 152.0 | 25/30/35/40 |

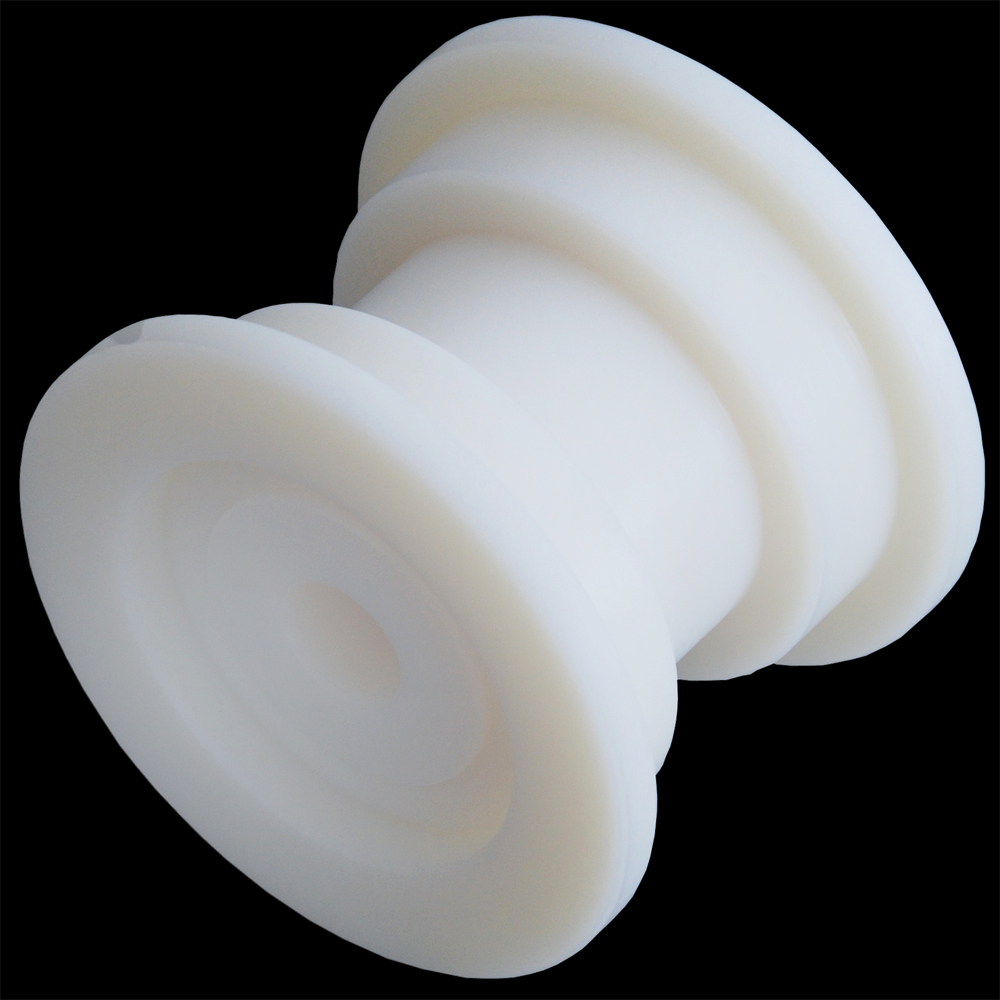

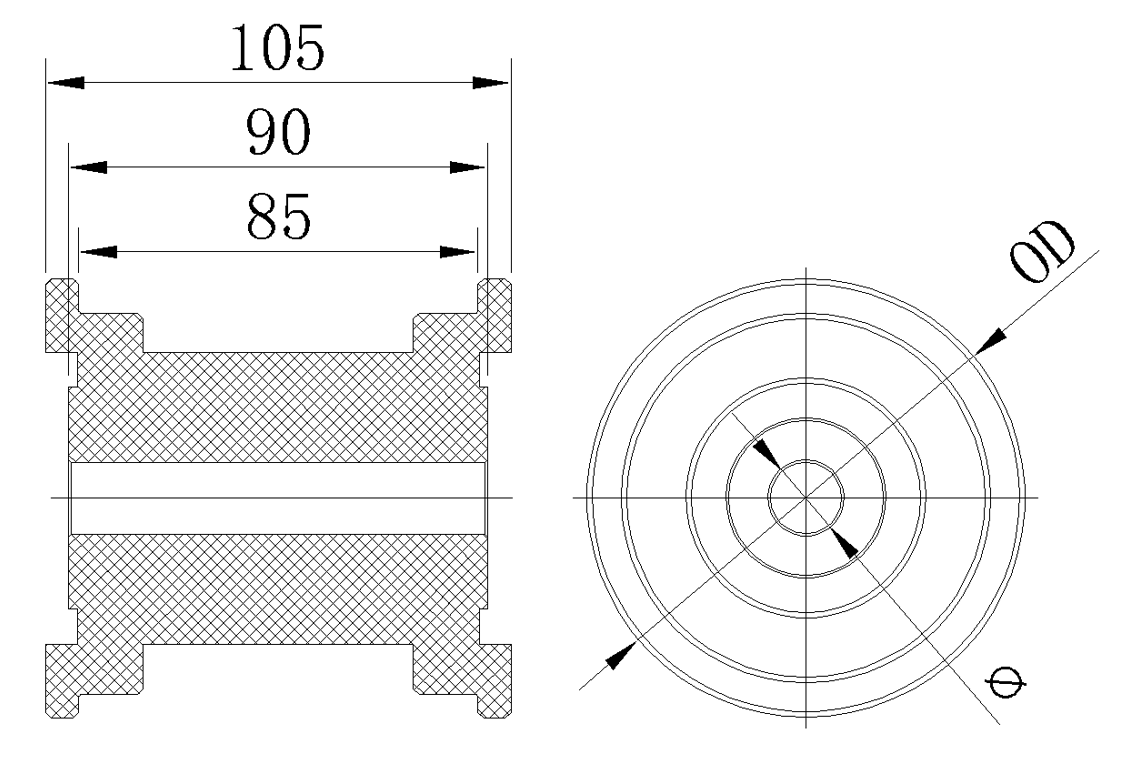

SS802 Series machined idler sprocket
NylonPA6, Machined,high precision,matching well Good strength, can be used in heavy load transport
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 19 | 60 | 117.0 | 20/25/30/35 |
| 21 | 70 | 131.0 | 25/30/35/40 |
| 23 | 80 | 140.7 | 25/30/35/40 |
| 25 | 90 | 155.0 | 25/30/35/40 |
SS802 Straight running steel chains -Single hinge-Double hinge
Body Mat： SUS420/SUS304
Pin Mat： SUS420/SUS304
Maximum Speed：lubricant 50m/min；Desiccant 30m/min
Working Load：(25℃) 3500 N,Maximum length 1 5 m
Main application: Suitable for straight conveying lines of metal products, glass products, etc.
